Brand: Irritrol SKUs: 214B, 216B, 217B
Product Overview

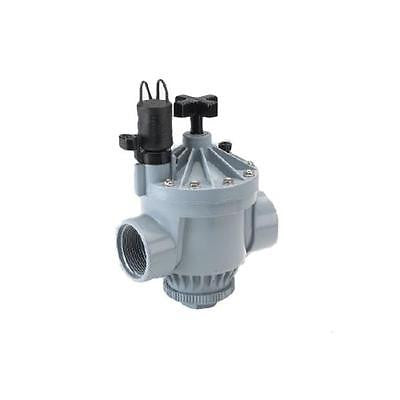

The Irritrol 200B Series is a family of heavy-duty globe/angle irrigation valves for systems that need larger threaded connections, adjustable flow control, and serviceable commercial-style construction. This listing includes the 214B 1-inch, 216B 1-1/2-inch, and 217B 2-inch models. Each valve uses female NPT connections and can be installed in either a globe or angle configuration, giving installers more flexibility when routing piping through a valve box or replacing an existing valve.
The 200B platform is designed for approximately 5 to 120 GPM, depending on valve size and system conditions. A slow-closing design helps reduce water hammer, while the double-beaded Santoprene diaphragm supports a dependable seal. Internal and external manual bleed options make testing and service easier, and the integrated flow-control stem can be used to balance a zone or manually shut the valve during maintenance. Stainless-steel bonnet hardware accepts common Phillips, flat-blade, or hex tools so the valve can be serviced without removing the body from the piping.
Each model includes a standard 24 VAC solenoid for use with compatible irrigation controllers. The 200B Series also accepts the optional Irritrol OmniReg modular pressure regulator when downstream pressure control is required.
Key Features
- Globe or angle installation configuration
- Female NPT threaded connections
- Integrated flow control and manual shutoff
- Approximate 5 to 120 GPM family flow range
- Internal and external manual bleed
- Slow-closing design to help reduce water hammer
- Double-beaded Santoprene diaphragm
- Standard 24 VAC solenoid
- Compatible with the optional OmniReg pressure regulator
Choose the Correct Size
-
214B: 1-inch NPT valve
-
216B: 1-1/2-inch NPT valve
-
217B: 2-inch NPT valve
Common Uses
- Residential and light-commercial irrigation mains
- Larger turf and landscape zones
- Globe-to-angle valve replacements
- Systems requiring local flow adjustment
Compatibility and Installation Notes
Select the valve size from the actual pipe connection, design flow, pressure loss, and available system pressure. Install the body with the molded flow direction aligned to water movement. Use a compatible 24 VAC irrigation controller and follow local plumbing, electrical, and backflow requirements. OmniReg, recycled-water solenoids, and repair kits are separate accessories unless specifically included.
Frequently Asked Questions
Can the 200B valve be installed as either a globe or angle valve?
Yes. The body is designed to support either configuration when installed according to Irritrol instructions.
Does each model include flow control?
Yes. The 214B, 216B, and 217B models in this listing include a flow-control stem.
Which size should replace my existing valve?
Match the valve's threaded connection size and verify the required flow and pressure before ordering.
