Brand: K-Rain SKUs: KV12, KV15
Product Overview
This selectable K-Rain KV nozzle listing includes the 12-foot KV12 and 15-foot KV15 variable-arc spray nozzles. Both models use male threads for K-Rain K-Spray bodies and other compatible spray heads with female-threaded risers. The adjustable pattern allows one nozzle model to cover corner, side, and broader arc locations while maintaining the KV family's designed precipitation characteristics throughout the adjustment range.
KV nozzles are color coded for quick field identification: KV12 is brown and KV15 is black. Each nozzle includes an extra-long filter that helps reduce clogging and extend the interval between cleaning. K-Rain recommends operation near 30 PSI for the intended spray pattern and radius. Actual throw can vary with dynamic pressure, wind, elevation, and installation height.
This product is the nozzle and filter only. The spray body, riser, check valve, and pressure regulator are sold separately. Confirm that the installed body has a female-threaded riser; K-Rain Pro-S bodies use male risers and require female-threaded KVF or other compatible nozzles instead.
Choose the Correct Variant
-

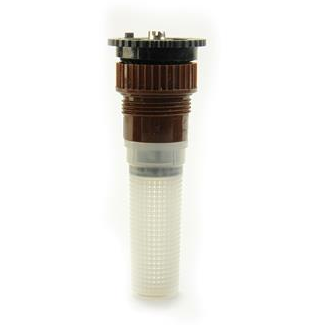

KV12: 12-foot nominal radius, brown, male thread
-

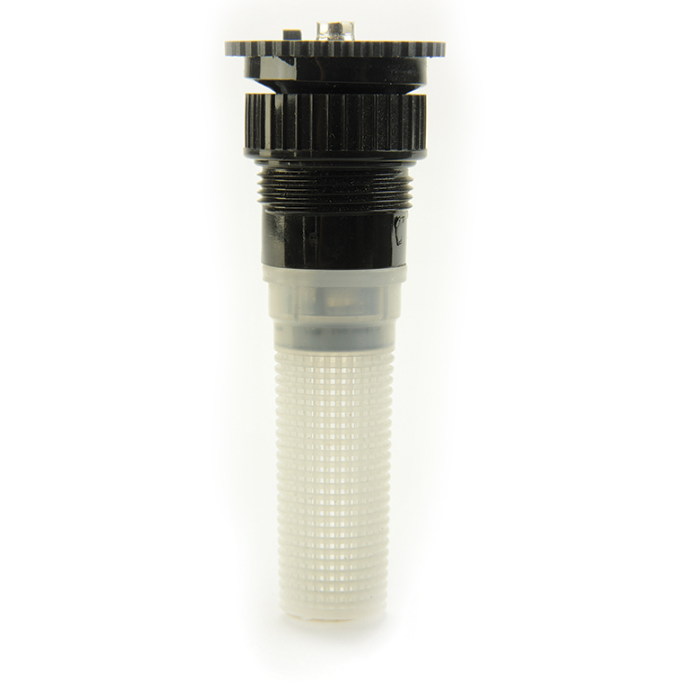

KV15: 15-foot nominal radius, black, male thread
Key Features
- Variable-arc spray pattern
- Male-threaded connection
- Designed for K-Spray and compatible female risers
- Color-coded radius identification
- Extra-long filter included
- Recommended operating pressure of approximately 30 PSI
Common Uses
- Residential lawn spray zones
- Flower beds and planted areas
- Replacing a compatible male-threaded adjustable nozzle
- Matching 12- or 15-foot head-to-head spacing
Compatibility and Installation Notes
Confirm the required radius and female-riser connection before selecting a variant. Flush the spray body, install the included filter and nozzle, then adjust the arc while the zone is operating. Use matched precipitation throughout the zone and regulate excessive pressure upstream or with a compatible regulated body.
Frequently Asked Questions
Will these nozzles fit K-Rain Pro-S bodies?
No. Pro-S uses a male riser and requires a female-threaded nozzle.
Is a spray body included?
No. This listing includes the selected nozzle and its filter only.
Which color is the 15-foot nozzle?
KV15 is black; KV12 is brown.
Why Buy This K-Rain KV Nozzle from Big Frog Supply?
This page lets you choose between the two commonly paired 12- and 15-foot male-threaded KV models while clearly identifying their colors and compatible riser type. Big Frog Supply also carries K-Spray bodies, shorter and longer KV radii, and female-threaded nozzle families for completing mixed repair inventories without guessing at thread direction.
