Kichler 15PC150SS Pro-Contractor Series 150W Transformer | 15V Stainless Steel

Product Details

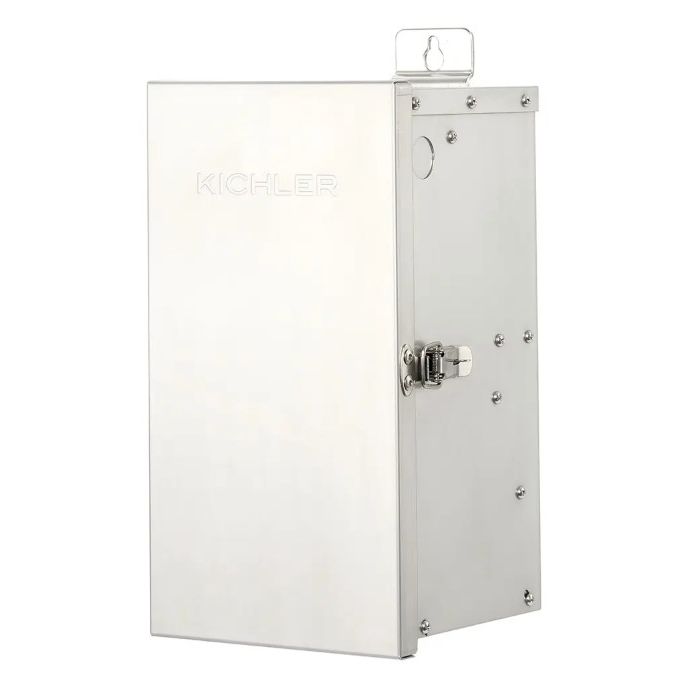

The Kichler 15PC150SS is a mid-capacity, professional-grade 150W transformer designed for residential and commercial landscape lighting projects. Built with a high-efficiency toroidal core, this unit provides exceptionally quiet operation and cooler running temperatures compared to standard transformers. Encased in a rugged 304-grade stainless steel cabinet, it is engineered to resist corrosion in even the harshest outdoor environments. The Pro-Contractor Series features a built-in mechanical timer and a plug-in photocell socket, giving you multiple options for automated control. With a 15V output tap, this transformer is optimized for modern LED systems, allowing you to compensate for voltage drop on longer wire runs to ensure every fixture shines with consistent brightness.

Key Features:

• Commercial-Grade Stainless Steel: Constructed from 304-grade stainless steel with a polished finish for maximum durability and aesthetic appeal.
• Toroidal Core Technology: Offers superior efficiency and silent performance, making it perfect for installations near windows or patios.
• Built-In Mechanical Timer: Features a 24-hour timer with easy-to-set "on/off" pins for reliable daily operation.

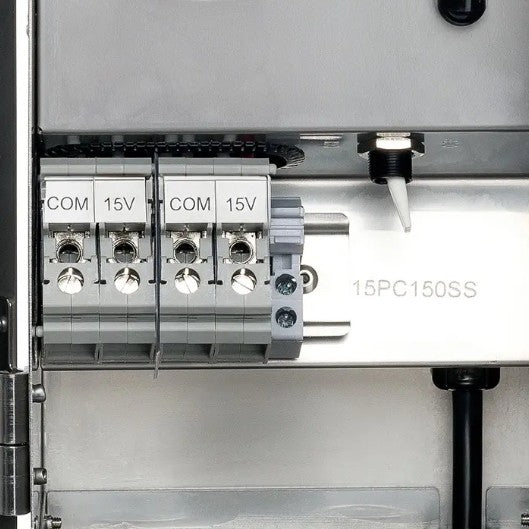

• Tool-Less Terminal Blocks: Large, angled wire terminals provide high visibility and easy access for securing 12/2 or 10/2 low-voltage cables.

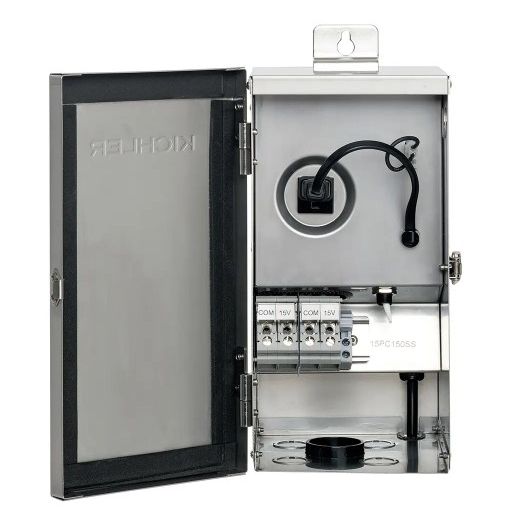

• Side-Hinged Door: The door swings to the side (rather than down), making it easier to program and wire when mounted in tight spaces.

Specifications:

• Wattage: 150 Watts Maximum
• Input Voltage: 120V AC
• Output Voltage: 15V AC Taps
• Core Type: Magnetic Toroidal
• Material: 304 Stainless Steel
• Protection: Primary and secondary magnetic circuit breakers.
• Dimensions: 11.5" H x 5.25" W x 5.5" D
• Safety Rating: cETLus Listed for Wet Locations

Installation & Maintenance Tips:

• Voltage Balancing: Use the 15V tap for fixtures located further than 50 feet from the transformer to maintain the 10V-14V range required for most LED lamps.
• Mounting: Mount at least 12 inches above the finished grade. Use the included template to ensure proper screw placement for the heavy-duty bracket.
• Load Calculation: For maximum transformer longevity, it is recommended to keep the total fixture wattage at or below 120W (80% of the 150W capacity).
• Photocell Port: If adding an external photocell, simply remove the internal jumper plug and snap the photocell connector into the dedicated socket.

Common Uses/Applications:

• Full-Yard LED Lighting: Powers approximately 20-40 modern LED path and accent lights.
• Hardscape Lighting: Ideal for under-cap wall lights, step lights, and patio perimeter lighting.
• Security Lighting: Provides reliable dusk-to-dawn power for floodlights and entrance illumination.

Common Questions:

Q: Can I use this with traditional Halogen bulbs?

A: Yes, but keep in mind that Halogen bulbs use significantly more power. Ensure your total wattage does not exceed 150W.

Q: Does it have a 12V tap as well?

A: The Pro-Contractor series is specifically designed with 15V taps to ensure enough "push" for LED systems, which can typically handle 9V to 15V without issue.

Q: What happens if there is a short circuit in the yard?

A: The secondary magnetic circuit breaker will trip instantly. Once the wiring fault is fixed, you can reset the breaker using the switch located inside the cabinet.

The Kichler 15PC150SS combines professional-grade power with elegant stainless steel durability, ensuring your landscape lighting remains beautiful for years to come.
