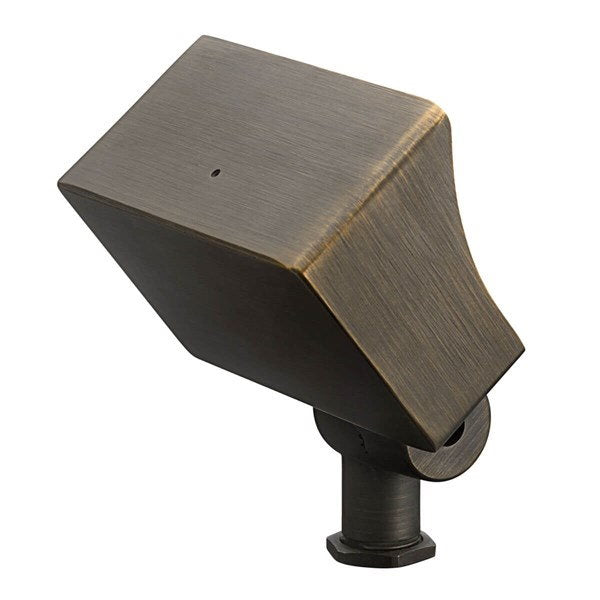

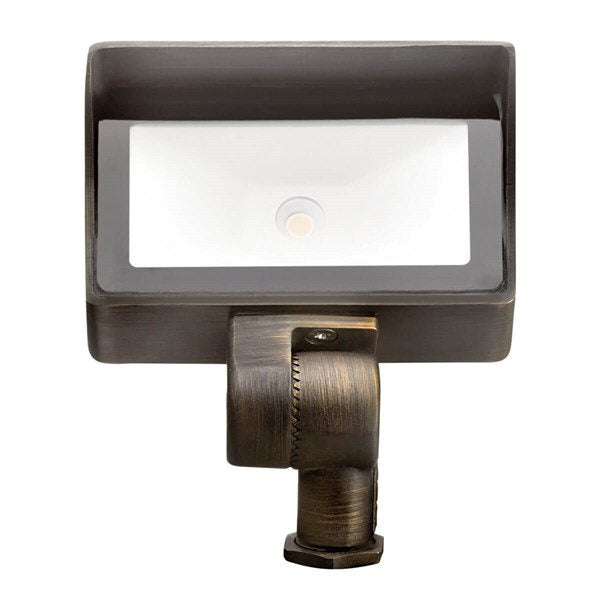

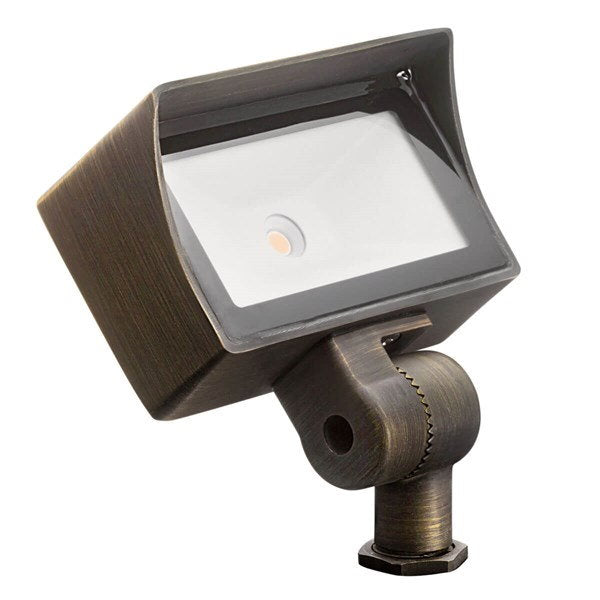

Kichler 16026CBR27 VLO 2700K 12V LED Mini Wall Wash Centennial Brass

Specification Sheet

The VLO 2700K 12V LED Mini Wall Wash fixture in Centennial Brass is equipped with the Lumen Effect System allows you to switch between four lumen outputs: 150, 300, 450 or 600 easily with the use of the Magnetic Key.

• Equipped with four-lumen levels in one fixture for quick and easy adjustment during or after installation with the Lumen Effect System.
• NEMA 6x5 beam spread from the custom reflector produces clean uniform light distribution, even when installed close to the application. The recessed LED and integrated cowl offer advanced glare control.
• Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements –helping to extend the life of the product
• This VLO Mini Wall Wash light can be utilized on residential properties as either a soft wall wash or a high output floodlight. This fixture can be tucked into more spots allowing it to integrate into the property and landscape easily.
• 4,000-volt system surge protection protects against power surges and irregularities when paired with one of our transformers.
• More robust angle adjustment on knuckle range with a 115-degree vertical rotation.
• Tempered, shock resistance glass with a high tolerance for thermal expansion and stress.
• Perfect for lighting up small wide trees, bushes, and scrubs or illuminating open/wide walls such as retaining walls, fences, and environmental structures (rocks walls or tree lines.)
• IP66 rated
• What's in the box? Includes 8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, and Magnetic Key

Dimensions:

• Height: 5.25"

• Length: 4.25"
• Width: 2.25"


Electrical:

• Operating Voltage Range: 9-15 VAC

• Voltage: 12V

Housing:

• Primary Material: Brass
• Finish: Centennial Brass

Light Source:

• Delivered Lumens: 600
• Expected Life Span (Hours): 50,000

• Lamp Included: Integrated

• Light Source: LED

Mounting/Installation:

• Location Rating: Wet

Photometrics:

• Color Rendering Index: 80

• Kelvin Temperature: 2700K
