Specification Sheet

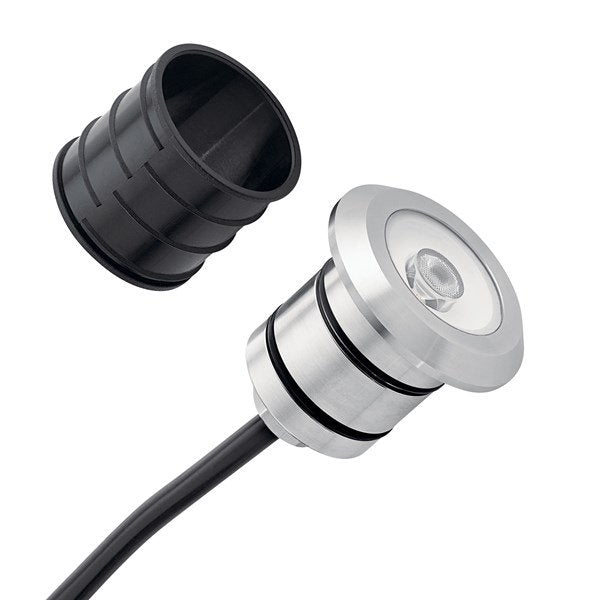

The 12V integrated LED All-Purpose Recessed fixture provides the performance and reliability you need for your next project or installation. This fully sealed and encapsulated fixture has 100 lumen output with a 2700K CCT, and comes in a Stainless Steel (SS) finish. The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it. A removeable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation. IP68 rated against dust and water ingression. Additional features include a 6000kV surge protection built-in to guard against power irregularities and a 9-15-volt operating range.

Dimensions:

  • Height: 2.25"
  • Width: 2.25"

Electrical:

  • Operating Voltage Range: 9-15 VAC
  • Voltage: 12V

Housing:

  • Primary Material: Stainless Steel
  • Finish: Stainless Steel

Light Source:

  • Delivered Lumens: 100
  • Expected Life Span (Hours): 50,000
  • Lamp Included: Integrated
  • Light Source: LED
  • Max or Nominal Watt: 1.5W
  • # of Bulbs/LED Modules: 1
  • Max Wattage/Range: 1.5W
  • Volt-Amperes (VA): 3.50

Mounting/Installation:

  • Lead Wire Length: 72"
  • Location Rating: Wet

Photometrics:

  • Color Rendering Index: 80
  • Delivered Efficacy (Lumens/Watt): 50
  • Kelvin Temperature: 2700K
