Spec Sheet  Install Manual

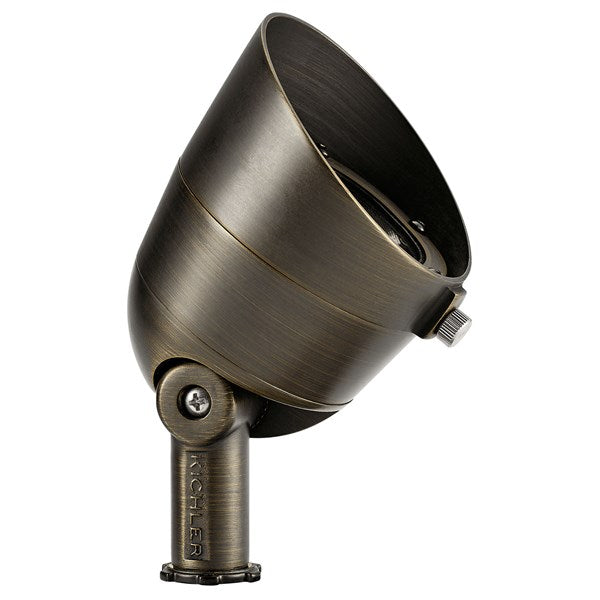

12V accent 10 degree, 300 lumen, 2700K spot light in cast brass (CBR) is an integrated, fully sealed LED fixture that features 4,000 volt surge protection. Featuring custom optics that assures no halos or scallops to deliver superb center-to-edge uniformity for clean, clear light.

Mounting/Installation

  • Location Rating: Wet
  • Wire Connectors: Wire Nuts

Dimensions

  • Height: 4.50"
  • Length: 3.50"
  • Width: 3.25"

Light Source

  • Delivered Lumens: 300
  • Expected Life Span (Hours): 40000
  • Lamp Included: Integrated
  • Max or Nominal Watt: 3.50
  • # of Bulbs/LED Modules: 6
  • Volt-Amperes (VA): 5.25

Product/Ordering Information

  • SKU: 16153CBR27
  • Finish: Centennial Brass
  • UPC: 783927545945

Photometrics

  • Color Rendering Index: 80
  • Kelvin Temperature: 2700 K
  • Beam Angle Options: 10.00
  • Delivered Efficacy (Lumens/Watt): 81

Electrical

  • Operating Voltage Range: 9-15 VAC
  • Voltage: 12 V

Housing

  • Primary Material: Brass

Certifications/Qualifications

  • Prop65: Yes



Mounting/Installation
Location Rating: Wet
Wire Connectors: Wire Nuts
Dimensions
Height: 4.50"
Length: 3.50"
Width: 3.25"
Light Source
Delivered Lumens: 300
Expected Life Span (Hours): 40000
Lamp Included: Integrated
Max or Nominal Watt: 3.50
# of Bulbs/LED Modules: 6
Volt-Amperes (VA): 5.25
Product/Ordering Information
SKU: 16153CBR27
Finish: Centennial Brass
UPC: 783927545945
Photometrics
Color Rendering Index: 80
Kelvin Temperature: 2700 K
Beam Angle Options: 10.00
Delivered Efficacy (Lumens/Watt): 81
Electrical
Operating Voltage Range: 9-15 VAC
Voltage: 12 V
Housing
Primary Material: Brass
Certifications/Qualifications
Prop65: Yes

Height: 4.50"
Length: 3.50"
Width: 3.25"
