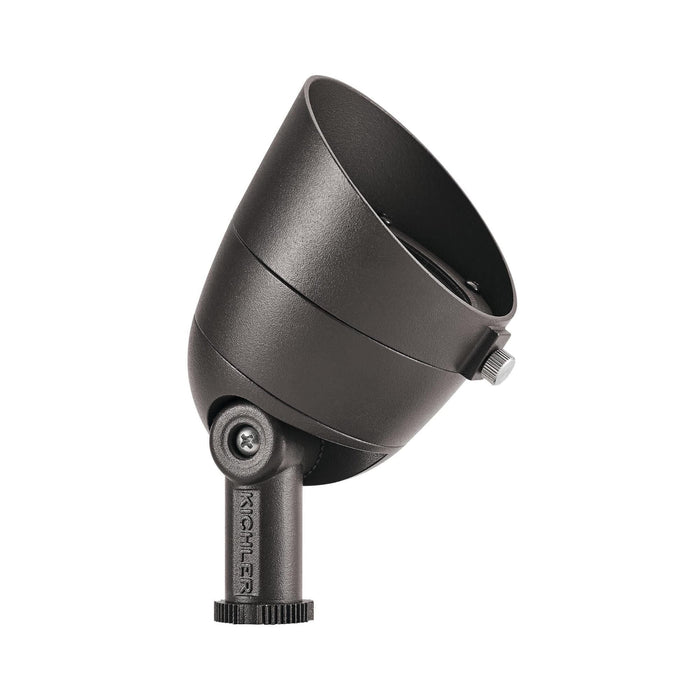

Kichler 16156AZT30 500-Lumen 3000K 10° LED Landscape Spotlight – Textured Architectural Bronze
Brand: Kichler | SKU: 16156AZT30
Product Overview
Give a slim outdoor detail a clear warm-white focal point with the Kichler 16156AZT30. It directs 500 lumens of 3000K light through a 10° spot optic, useful where a narrower, more intense accent is needed. The Textured Architectural Bronze head can blend into planting beds and dark masonry.
The 10° beam needs deliberate aiming; check the width and distance of the subject before choosing it over a flood. Match the color to nearby 3000K lights. Its integrated LED is wet rated and connects to a suitable low-voltage landscape transformer.
Key Features
- 500-lumen integrated LED with a focused 10° spot beam.
- 3000K light and Textured Architectural Bronze finish.
- Sealed, wet-rated housing with 4,000V surge protection.
Common Uses
- Narrow columns and architectural trim
- Defined highlights on tall specimen plants
Technical Specifications
- Model: 16156AZT30
- Output: 500 lumens
- Color temperature: 3000K
- Beam angle: 10° spot
- Light source: integrated LED
- Input: 12V landscape lighting; operating range 9–15V
- Housing: aluminum, Textured Architectural Bronze
- Rating: wet location
- Surge protection: 4,000V
Dimensions
- Height: 4.50 in.
- Length: 3.50 in.
- Width: 3.25 in.
Compatibility & Installation Notes
Use a compatible low-voltage landscape transformer and follow Kichler’s 16156 instructions for mounting and wiring. Check total load and voltage drop along the cable run; aim the head at the narrow subject during installation.
FAQ
How focused is the light?
The 10° spot is for a narrow subject. The lit width also depends on the aiming distance.
Is a replacement bulb required?
No. The LED is integrated into the head.
Can it be installed in an exposed bed?
Yes. Kichler rates the sealed light for wet locations; follow the installation instructions.
Why Buy From Big Frog Supply
Big Frog Supply identifies the exact 3000K color, Textured Architectural Bronze finish, 500-lumen output, and narrow beam to help compare it with wider Kichler accents.
Model: 16156AZT30
Output: 500 lumens; 3000K; 10° spot
Integrated LED
Input: 12V landscape lighting, 9–15V operating range
Housing: Textured Architectural Bronze
Wet rated; 4,000V surge protection
Dimensions: 4.50 in. H x 3.50 in. L x 3.25 in. W
