King Innovation 20235 DryConn DBR/Y-600 Red/Yellow Direct-Bury Splice Kit – 100-Pack
Brand: King Innovation | SKU: 20235
Product Overview

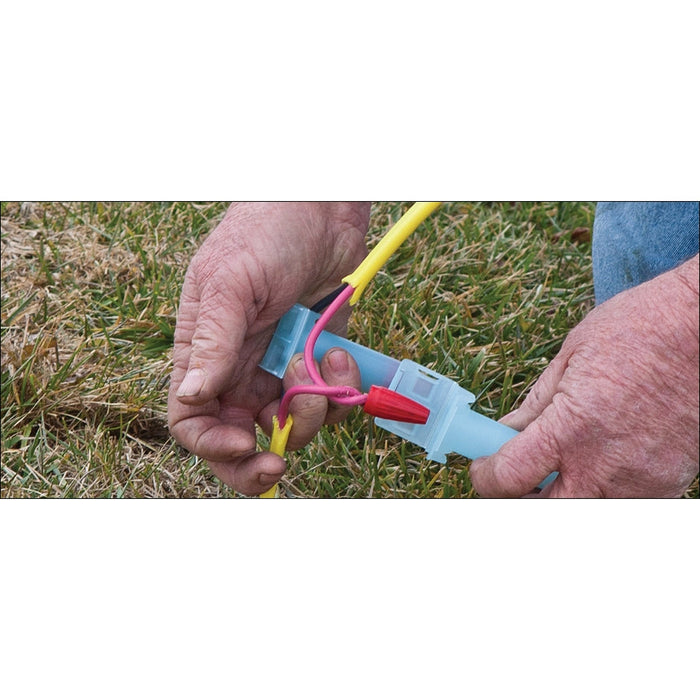

A buried or wet-location splice needs a connector system suited to the circuit and wire combination. The King Innovation 20235 DBR/Y-600 uses a red/yellow cushion-grip connector and a silicone-filled strain-relief tube. It is designed for a larger outdoor electrical wiring project, with a protective enclosure around the wire connection.

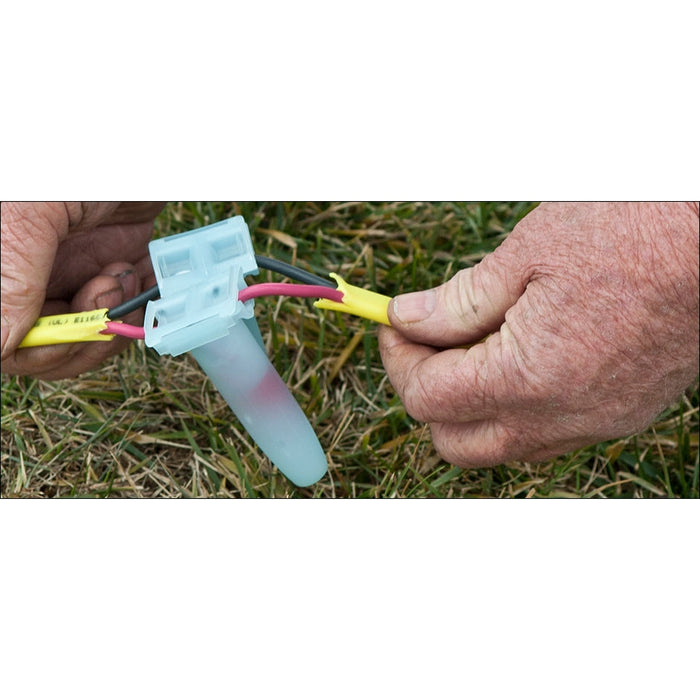

This 100-count box helps you plan the number of connections on the job. The sealed tube’s snap-fit lid helps protect the connection and manage strain on the wires. Check the manufacturer’s approved conductor combinations and 600V maximum building wire rating before ordering. The overall #22–#8 copper range does not mean every gauge combination is allowed.
Key Features
- A red/yellow cushion-grip connector and a silicone-filled strain-relief tube
- 600V maximum building wire rating; use within the manufacturer’s listing
- 100 connector systems per box
- Protective housing for approved outdoor splices
Common Uses
- A larger outdoor electrical wiring project
- Connections within the listed voltage and location conditions
Technical Specifications
- Model: 20235
- System: a red/yellow cushion-grip connector and a silicone-filled strain-relief tube
- Wire type: copper/copper
- Overall wire range: #22–#8 copper; verify approved combinations
- Maximum rating: 600V maximum building wire
- Quantity: 100 per box
Dimensions
- Connector system size: 3 11/16 x 1 1/2 x 1 3/16 in.
Compatibility & Installation Notes
Turn off power before work. Follow King Innovation’s instructions for conductor preparation, connection, seating the splice in the protective housing, and closing the lid or plug. Confirm the required listing, wire combination, voltage, and local electrical code. Do not reuse a connector system.
Frequently Asked Questions
What is in the package?
The 20235 is sold as 100 DBR/Y-600 connector systems per box.
Can it be buried?
The manufacturer lists direct-bury and wet-location use under its UL 486D conditions; follow the complete instructions.
Will every wire combination within the stated range fit?
No. Match the exact conductors to King Innovation’s combination chart.
Why Buy From Big Frog Supply
The 20235 provides 100 DBR/Y-600 systems for a larger outdoor electrical wiring project. Big Frog Supply identifies the exact package and rating so you can compare it with other DryConn options before ordering.
Model: 20235
Family: DBR/Y-600
Selling unit: 100 per box
System: a red/yellow cushion-grip connector and a silicone-filled strain-relief tube
Maximum rating: 600V maximum building wire
Wire type/range: #22–#8 copper; verify approved combinations
Size: 3 11/16 x 1 1/2 x 1 3/16 in.
Follow manufacturer instructions; do not reuse
