King Innovation - 63650 - DBSR Aqua, 100pc. Box

Spec Sheet

FEATURES & BENEFITS:

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Pre-filled with dielectric silicone sealant that never hardens
• Waterproof and corrosion proof
• Easy latch lid provides strain relief
• One piece for easy installation
• Silicone Sealant Temperature: -45°F to 400°F
• Designed for tracer splices and cathodic applications

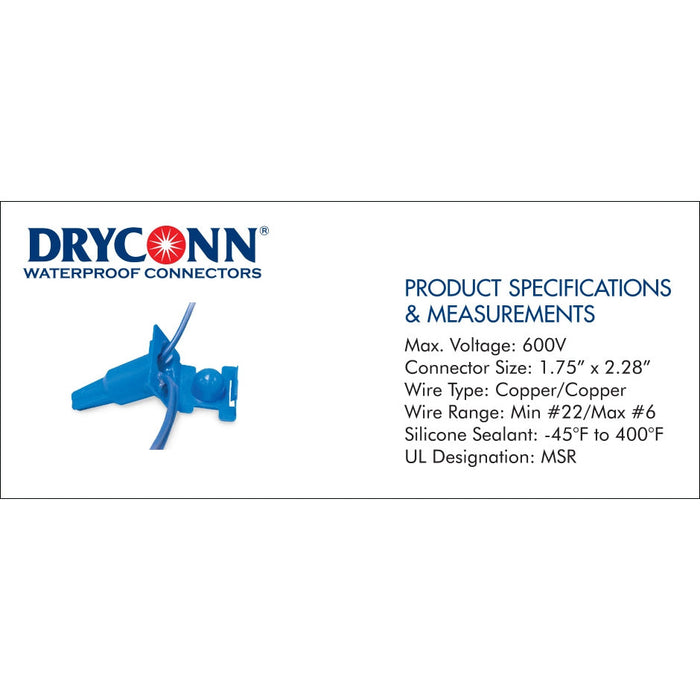

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V

• Connector Size: 1.75” x 2.28”

• Wire Type: Copper/Copper

• Wire Range: Min #22/Max #6

• Silicone Sealant: -45°F to 400°F

• UL Designation: MSR

Max. Voltage: 600V
Connector Size: 1.75” x 2.28”
Wire Type: Copper/Copper
Wire Range: Min #22/Max #6
Silicone Sealant: -45°F to 400°F
UL Designation: MSR

Connector Size: 1.75” x 2.28”
