King Innovation 95025 AlumiConn 2-Port Al/Cu Wire Connectors – 25-Pack
Brand: King Innovation | SKU: 95025
Product Overview

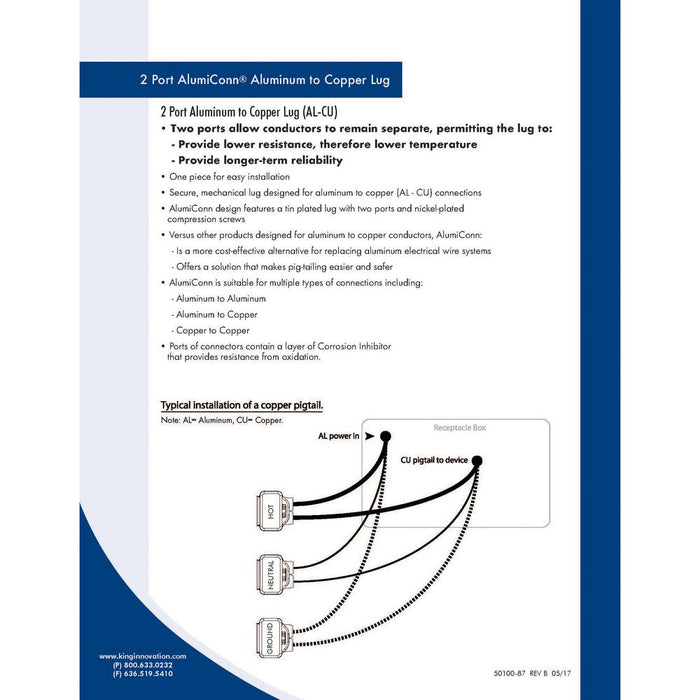

When an approved connection calls for aluminum and copper conductors, the King Innovation 95025 AlumiConn provides a two-port mechanical lug that keeps the conductors in separate openings. Each port holds one conductor, and set screws secure the wires against a tin-plated lug. The ports contain a corrosion inhibitor to help resist oxidation.
This 25-pack is sized for a room-scale repair with some spare connectors. Check the conductor material and gauge before ordering: King Innovation lists #12–#10 solid aluminum and #18–#10 solid or stranded copper for this two-port model. Proper installation requires the torque values and steps in the manufacturer's sheet, along with applicable electrical codes. The connector is single-use and should not be reused.
Key Features
- Two separate ports for approved Al/Al, Al/Cu, or Cu/Cu connections
- Pressure-screw connector listed to UL 486C
- Corrosion inhibitor inside the ports
- 25 connectors per bag
Common Uses
- Approved aluminum-to-copper wiring repairs
- Electrical work where a two-conductor mechanical connection is specified
Technical Specifications
- Model: 95025
- Package quantity: 25
- Ports: 2; one conductor per port
- Rated voltage: 300V maximum
- Conductor range: #12–#10 solid aluminum; #18–#10 solid or stranded copper
- Temperature rating: 105°C
- UL 486C listed; do not reuse
Dimensions
- Connector depth: 0.77 in.
- Connector width: 0.91 in.
- Connector height: 0.65 in.
Compatibility & Installation Notes
Confirm the conductor size, material, enclosure space, and required connector type for the job. Turn off power before work and follow the manufacturer’s installation sheet for strip length, torque by conductor type, and lid closure. Electrical work must follow applicable local and national codes.
Frequently Asked Questions
Can aluminum and copper wires share one port?
No. The two-port design keeps conductors separate, with one conductor in each port.
What wire sizes are listed?
King Innovation lists #12–#10 solid aluminum and #18–#10 solid or stranded copper for this connector.
Can I reuse an AlumiConn connector?
No. The manufacturer specifies that the connector is not reusable.
Why Buy From Big Frog Supply
The 95025 gives you 25 two-port AlumiConn connectors for a room-scale repair with some spare connectors. Big Frog Supply lists the exact pack size and conductor range so you can select the right quantity and check fit before ordering.
Color Family Purple
Electrical Product Type Wire Connector
Maximum Wire Capacity #10 (solid AL, solid & stranded CU)
Minimum Wire Capacity #12 (solid AL), #18 (solid & stranded CU)
