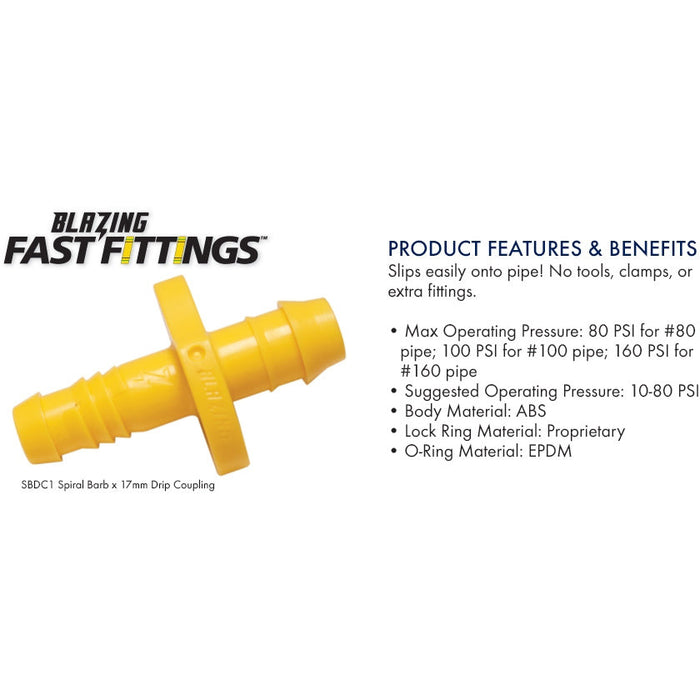

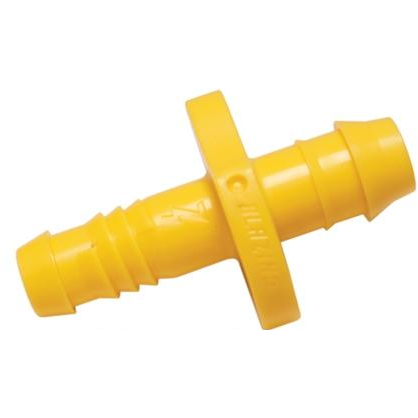

Blazing SBDC1 Spiral Barb to 17 mm Drip Coupling — 25 Pack
Brand: King Innovation (Blazing) | SKU: SBDC1
Product Overview
The SBDC1 connects a compatible spiral-barb irrigation line to 17 mm drip tubing without a separate clamp. It is part of King's Blazing Fast Fittings range for branch or lateral work. Check both tubing dimensions and pipe class before ordering; these fittings are not intended for a main line or constant-pressure service.
Key Features
- Spiral barb to 17 mm drip coupling configuration.
- Clampless push-on fitting with ABS body and EPDM O-ring.
- 25 couplings per bag.
Common Uses
Connecting compatible irrigation lateral or swing-pipe branches to 17 mm drip tubing in an appropriately pressure-regulated system.
Technical Specifications
- Suggested operating pressure: 10–80 psi.
- Family-sheet maximums by NSF poly pipe class: 80 psi for #80, 100 psi for #100, 160 psi for #160.
- ABS body, proprietary lock ring and EPDM O-ring.
- Not intended for main lines or continuous pressure.
Dimensions
Package: 1.5 × 10.7 × 10 in (height × width × depth). King does not list the fitting's body dimensions on the page or family sheet.
Compatibility & Installation Notes
Confirm the spiral-barb side fits the pipe in your layout and the other side fits the selected 17 mm drip tubing. Use a straight pipe cut, clean debris from the fitting, and push pipe over the lock ring to the pipe stops, as shown in King's family instructions. Test for leaks at operating pressure before backfilling.
Frequently Asked Questions
Is SBDC1 for 17 mm drip tubing?
Yes. King identifies the outlet as a 17 mm drip coupling; verify your tubing's actual fit.
Can I install it on a main line under constant pressure?
No. King's fitting sheet says the family is not intended for main lines or constant pressure.
How many couplings are included?
25 SBDC1 fittings per bag.
Why Buy This Package
The 25-count bag supplies matching spiral-barb to drip transitions for repeated irrigation lateral connections.
Blazing Fast Fittings SBDC1, spiral barb to 17 mm drip coupling; bag of 25; ABS body, proprietary lock ring, EPDM O-ring; suggested 10–80 psi operating range; family sheet lists maximum 80 psi for NSF #80 pipe, 100 psi for #100, 160 psi for #160. Not intended for main lines or constant pressure. Verify inlet pipe and 17 mm drip compatibility.
