Spec Sheet

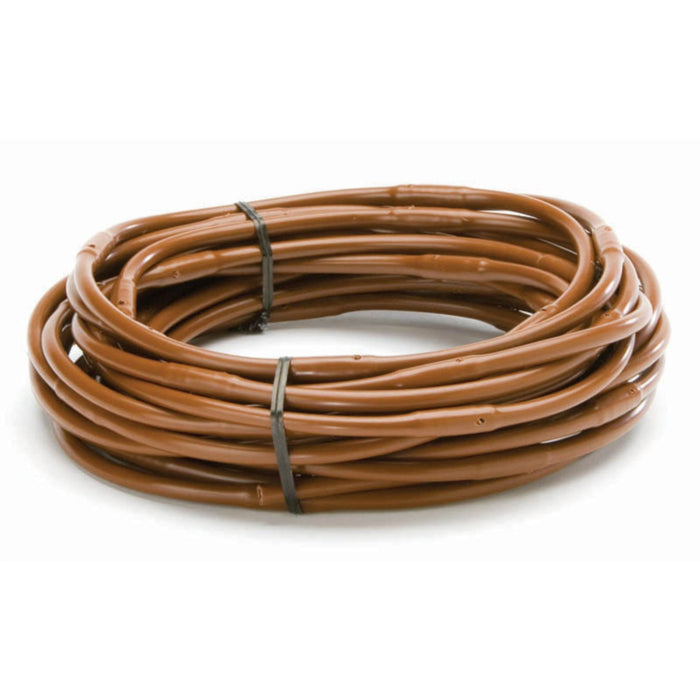

Rain Bird's 1/4" Dripline is a perfect choice for small-sized areas such as planter boxes, container gardens, loops around trees, vegetable gardens and shrubs.

XQ 1/4 Inch Drip Tubing Features Include:
  • Simple to use, as the flexible tubing makes watering pots and container gardens easy.
  • 1/4" tubing size complements the aesthetics of any garden.
  • Clog resistance through built-in filtration and two outlet holes, 180 degrees apart.
  • Brown tubing complements Rain Bird XF Dripline.
  • Unobtrusive size and flexibility provide a low-profile, aesthetically pleasing means to irrigate plants.
  • Works with Rain Bird 1/4" barbed Fittings.
  • Comes in 2 spacings (6" (15.25 cm ) and 12" (30.5 cm)) and a coil length of 100' (30.5 m) for design flexibility.
Operating Range:
  • 10 to 40 psi (0.7 to 2.7 bar)
  • Flow rate at 30 psi (2.0 bar): 0.8gph (3.0 l/h)
  • Required filtration: 200 mesh (75 micron)
Specifications:
  • Outside diameter: 0.250" (6 mm)
  • Inside diameter: 0.170" (4 mm)
  • Wall thickness: 0.040" (1 mm)
  • Spacing: 6"
  • Length: 100' (30.5 m) coils

Specifications:

  • Flow Control: 0.8 GPM
  • Pressure Rating/Range: 10 - 40 PSI

10 to 40 psi (0.7 to 2.7 bar)
Flow rate at 30 psi (2.0 bar): 0.8gph (3.0 l/h)
Required filtration: 200 mesh (75 micron)

Outside diameter: 0.250" (6 mm)
Inside diameter: 0.170" (4 mm)
Wall thickness: 0.040" (1 mm)
Spacing: 6"
Length: 100' (30.5 m) coils
