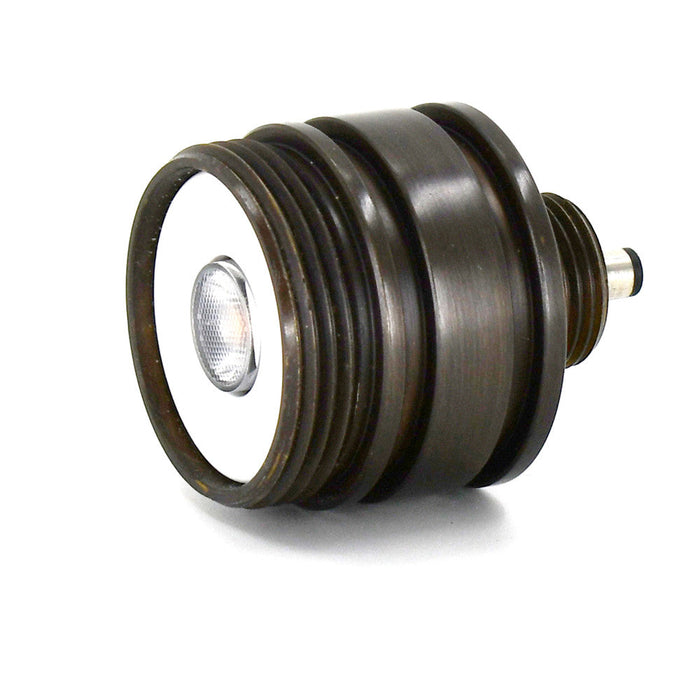

Lumien M4B1-5.5W-30K-40-A Brass Micro Module
Brand: Lumien | SKU: M4B1-5.5W-30K-40-A
Product Overview
The Lumien M4B1-5.5W-30K-40-A Brass Micro Module is a 5.5W LED engine for the manufacturer-compatible brass micro system. The selected version provides 3000K white light. Its 40° optic defines the listed beam spread; match that coverage to the target and the housing that completes the installation.
Compare the body and connector dimensions with the original assembly before replacing an engine. Lumien lists primary-side MLV/ELV control for the CORE option; check the compatible power supply and dimmer arrangement. The matched table lists 8.5 VA, which is separate from the 5.5W input-power rating. Use the manufacturer electrical requirements when planning the total connected load.
Key Features
- Brass construction
- Module configuration selected by exact size, light option, and host compatibility
Common Uses
Use for a compatible Lumien housing or Quick Connect assembly. Measure the available clearance around the module body and connector, then verify the exact housing/module pairing against the manufacturer documentation.
Technical Specifications
-
Selected module: M4B1-5.5W-30K-40-A
-
Input power: 5.5W
-
Light option: 3000K
-
Beam spread: 40°
-
Delivered output: 472 lumens
-
Control: CORE primary-side MLV/ELV
-
Volt amperes: 8.5 VA
-
Operating voltage: 10–15V
-
Material: Brass
Manufacturer-listed included components: QC 6' Wire Lead, QC Lock Screw, (2) Micro O-ring
Dimensions
Module diameter: 1.59 in.; body-height callout: 1.26 in.; length including lower connector: 2.64 in. Wire excluded.
Compatibility & Installation Notes
Lumien identifies compatibility with Brass Micro Drop In & Brass Quick Connect Series. Match the exact component and its electrical or control requirements before ordering.
Measure the available clearance around the module body and connector, then verify the exact housing/module pairing against the manufacturer documentation. The host must support the selected Brass Micro Module; match the electrical and control requirements of the chosen module. Follow the applicable manufacturer instructions.
Frequently Asked Questions
Will the module fit any Lumien housing?
Match the exact module series, body and connector clearance, and manufacturer-supported housing. Low voltage alone does not establish compatibility.
How is the light controlled?
CORE primary-side MLV/ELV. Confirm the supported power supply and control arrangement for the selected module.
Which output value should I use?
The matched manufacturer table lists 472 lumens for the selected light option. A family maximum does not describe every module.
