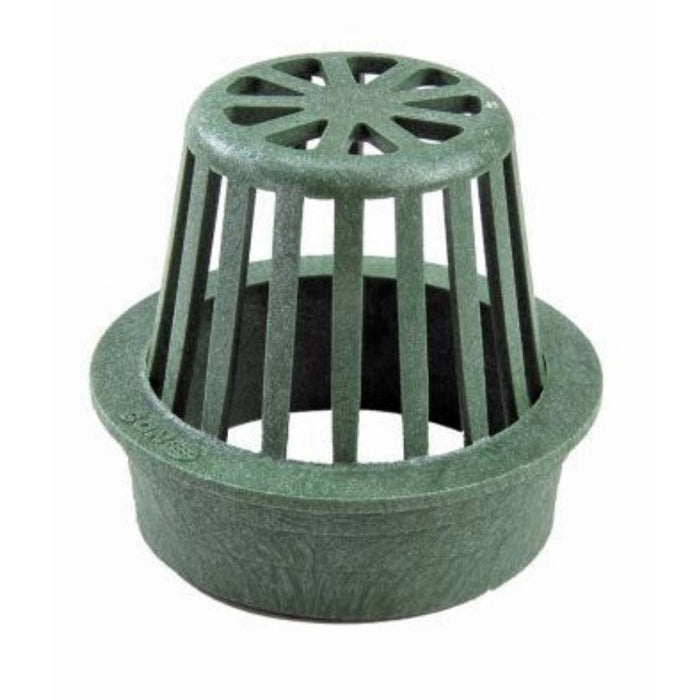

NDS 80 6" Round Green Atrium Grate

Connects to Spee-D Catch Basin Drain, 6 in. sewer and drain pipe & fittings, & 6 in. single-wall corrugated pipe for a soil-tight fit. Built to stand up to the elements, the drain grate (or drain cover) is made of polyethylene, a type of plastic, using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking from the sun. As part of a complete drainage system, the grate blocks mulch, leaves and debris as it drains water entering drain pipes. The pipes carry the water to a discharge point downstream such as a pop-up emitter or percolates into the ground with a dry well or infiltration trench

• Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
• Ideal for draining moderate water flows from mulched landscape beds, natural areas and window wells
• Fits spee-d catch basin drain, 6 in. sewer and drain pipe and fittings, 6 in. corrugated pipe
• 28.4 sq. in. open surface area
• 87 GPM flow rate
• Allows water to flow freely in areas prone to debris collection
• Grate is 5-3/4 in. H, top is 3-7/8 in. Dia grate openings are 1/4 in. W
• 6 in. atrium drain grates are available in a variety of colors
• Comes with one 6 in. atrium grate
• Works with connected drain pipe to capture and convey excess surface water for proper release downstream
• Place on top of drain pipe, drain fitting or spee-d basin for a soil-tight fit
• High-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
• Use sewer and drain fittings when you need to make turns from the drain grate to drain pipe
• Use with a pop-up drainage emitter to discharge collected water at a point of release downstream
• Use with a flo-well dry well system and ez drain gravel-free French drain system to detain excess water and slowly release it into the ground
• Onsite stormwater management protects the watershed downstream and limits excess runoff which can lead to negative impacts such as erosion, pollution and flooding

Specifications:

• Product type

  Grates
  Material HDPE
  Color Green

Max. Compatible Pipe Size (In.)
6"
Min. Compatible Pipe Size (In.)
6"
Product Depth (in.)
6.25
Product Height (in.)
5.75
Product Width (in.)
6.25
