Brand: Hunter Industries SKU: PGV-101G
Product Overview

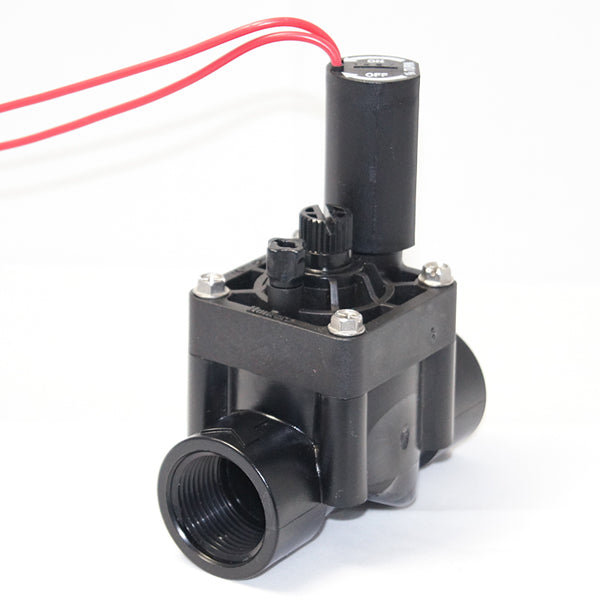

The Hunter PGV-101G is a 1-inch screw-top irrigation valve with female-threaded inlet and outlet connections and an integrated flow-control stem. Hunter’s current model designation is PGV-101-G, while the Big Frog Supply SKU is stored as PGV-101G. The valve is designed for residential and light-commercial sprinkler systems that require a serviceable 24 VAC control valve with local flow adjustment.
Hunter rates the 1-inch PGV family for approximately 0.2 to 40 GPM and a recommended pressure range of 20 to 150 PSI. The flow-control stem can be used to balance the zone, reduce excessive flow, or close the valve during service. A double-beaded diaphragm, reverse-flow solenoid design, internal and external manual bleed, and captive solenoid plunger support routine installation and maintenance.
Key Features
- 1-inch female-threaded inlet and outlet
- Integrated flow control
- Approximate flow range of 0.2 to 40 GPM
- Recommended pressure range of 20 to 150 PSI
- Temperature rating up to 150°F
- Double-beaded diaphragm
- Reverse-flow solenoid design
- External and internal manual bleed
- Standard encapsulated 24 VAC solenoid
Common Uses
- Residential sprinkler zones
- Light-commercial irrigation systems
- Zones requiring manual flow adjustment
- Replacing a matching 1-inch threaded PGV valve
Compatibility and Installation Notes
- Connect to compatible 1-inch female-threaded piping.
- Install with the body flow arrow aligned with water movement.
- Use with a compatible 24 VAC irrigation controller unless an approved alternate solenoid is installed.
- Size the valve according to design flow, pressure loss, available pressure, and downstream demand.
- Flush the line before installation and provide service access in the valve box.
- Accu Sync pressure regulation, DC-latching solenoids, and reclaimed-water identification parts are separate options unless specifically ordered.
Frequently Asked Questions
Does the PGV-101G include flow control?
Yes. The 101 designation identifies the 1-inch PGV configuration with a flow-control stem.
Are the connections threaded?
Yes. This model uses 1-inch female-threaded inlet and outlet connections.
Can this valve be used with a battery controller?
The included solenoid is 24 VAC. Supported battery-controller systems require a compatible Hunter DC-latching solenoid.
Why Buy from Big Frog Supply?
Big Frog Supply carries Hunter PGV valves, solenoids, diaphragms, pressure regulators, controllers, and irrigation repair components.
Product Type Residential/light-commercial globe irrigation valve
Manufacturer Model PGV-101-G
Store SKU PGV-101G
Connections 1" female threaded inlet and outlet
Flow Control Included
Flow Range 0.2–40 GPM
Recommended Pressure 20–150 PSI
Temperature Rating 150°F
Standard Solenoid 24 VAC
60 Hz Solenoid Current 350 mA inrush; 190 mA holding
50 Hz Solenoid Current 370 mA inrush; 210 mA holding
Diaphragm Double-beaded
