Brand: Hunter Industries SKU: PGV100GS
Product Overview

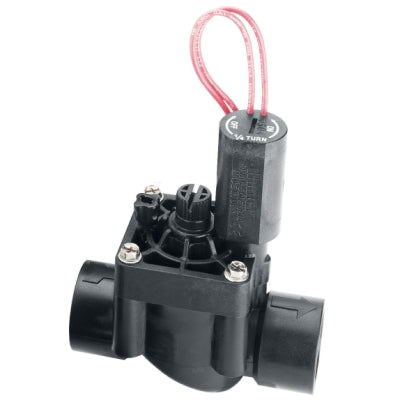

The Hunter PGV-100-G-S is a 1-inch screw-top irrigation valve with slip inlet and outlet connections and no flow-control stem. The Big Frog Supply SKU is stored as PGV100GS. It is intended for residential and light-commercial systems using compatible solvent-weld PVC piping where a compact 24 VAC control valve is needed without manual flow adjustment.
Hunter rates the 1-inch PGV family for approximately 0.2 to 40 GPM and a recommended pressure range of 20 to 150 PSI. The valve uses a double-beaded diaphragm, reverse-flow solenoid design, internal and external manual bleed, and a standard encapsulated 24 VAC solenoid. Because this configuration does not include flow control, zone balancing or throttling must be addressed elsewhere in the irrigation design.
Key Features
- 1-inch slip inlet and outlet connections
- No flow control
- Approximate flow range of 0.2 to 40 GPM
- Recommended pressure range of 20 to 150 PSI
- Temperature rating up to 150°F
- Double-beaded diaphragm
- Reverse-flow solenoid design
- External and internal manual bleed
- Standard encapsulated 24 VAC solenoid
Common Uses
- Residential sprinkler zones
- Light-commercial irrigation systems
- Solvent-weld PVC installations
- Replacing a matching 1-inch slip PGV valve without flow control
Compatibility and Installation Notes
- Confirm the slip sockets match the planned 1-inch PVC piping.
- Install with the body flow arrow aligned with water movement.
- Follow the pipe and cement manufacturer’s solvent-weld preparation and cure-time instructions.
- This model does not include a flow-control stem.
- Use with a compatible 24 VAC controller unless an approved alternate solenoid is installed.
- Flush the piping before installation and provide service access in the valve box.
Frequently Asked Questions
Does PGV100GS include flow control?
No. Hunter identifies PGV-100-G-S as the no-flow-control slip configuration.
Are these threaded connections?
No. Both the inlet and outlet are slip sockets intended for compatible solvent-weld piping.
Can it be used with a battery controller?
The included solenoid is 24 VAC. Supported battery systems require a compatible Hunter DC-latching solenoid.
Why Buy from Big Frog Supply?
Big Frog Supply carries Hunter PGV valves, solenoids, diaphragms, pressure regulators, controllers, and irrigation repair components.
Product Type Residential/light-commercial irrigation valve
Manufacturer Model PGV-100-G-S
Store SKU PGV100GS
Connections 1" slip inlet and outlet
Flow Control Not included
Flow Range 0.2–40 GPM
Recommended Pressure 20–150 PSI
Temperature Rating 150°F
Standard Solenoid 24 VAC
60 Hz Solenoid Current 350 mA inrush; 190 mA holding
50 Hz Solenoid Current 370 mA inrush; 210 mA holding
Diaphragm Double-beaded
