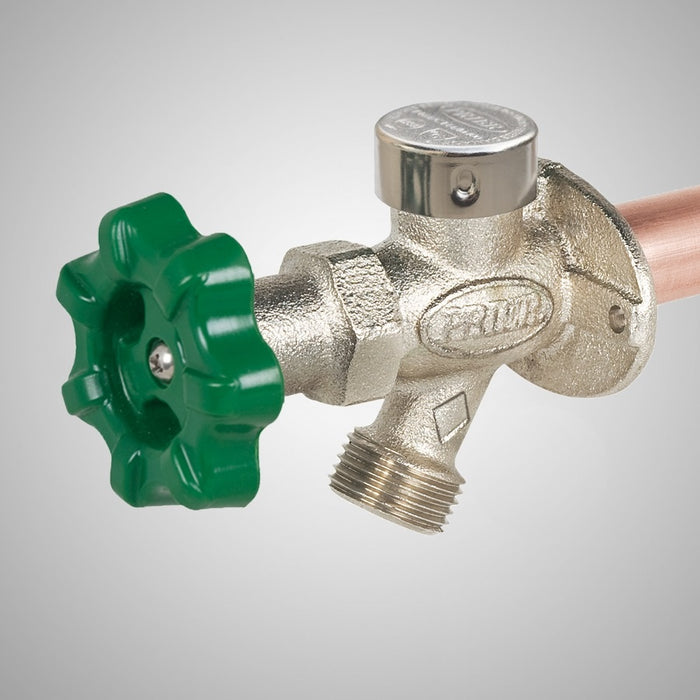

Prier P-164X Quarter-Turn Anti-Siphon Wall Hydrant – 1/2-inch crimp PEX
Brand: Prier | Model: P-164X | SKUs: P-164X12, P-164X16, P-164X22, P-164XCC
Product Overview
Open an outdoor water connection with a quarter turn of the soft-grip handle. Choose X style for a half-inch crimp PEX supply; it is different from the W expansion PEX style. The Prier P-164X pairs a compression-type seal with anti-siphon protection. Match the insertion length to the wall and heated supply location to support proper drainage and freeze protection.
Key Features
- Quarter-turn soft-grip handle.
- Vacuum breaker and backflow check.
- Brass body with satin-nickel finish.
- Mounting flange with built-in drainage pitch.
Common Uses
Residential outdoor watering and replacement of a compatible wall hydrant.
Technical Specifications
- Series: P-164
- Inlet: 1/2-inch crimp PEX
- Operation: Quarter turn
- Handle: Soft grip
- Body: Brass
- Finish: Satin nickel
- Protection: Vacuum breaker and backflow check
Dimensions
- Insertion options: 12 inches, 16 inches, 22 inches, close coupled
- Supply inlet: 1/2-inch crimp PEX
Compatibility & Installation Notes
Place the shutoff in heated space, face the spout down and maintain drainage pitch. Remove the hose during freezing weather. Check the inlet joining method and test for leaks before closing the wall. Avoid leaving the valve on for more than twelve continuous hours.
Frequently Asked Questions
How far does the handle turn?
A quarter turn opens or closes the valve.
What supply inlet does this model use?
It uses 1/2-inch crimp PEX.
Can the hose stay attached in freezing weather?
No. Remove it so the hydrant can drain.
