Spec Sheet

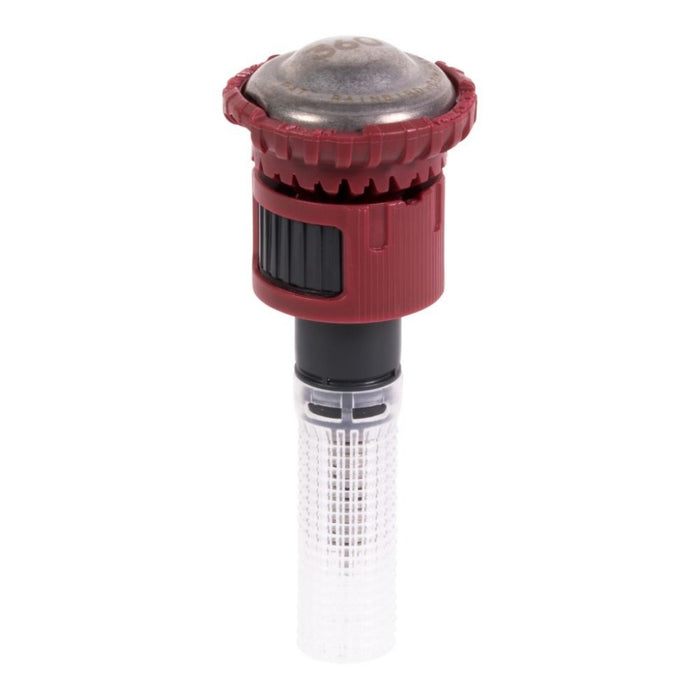

Rain Bird® R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.

Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

Thick wind-resistant streams ensure efficient performance in adverse real world conditions. R-VAN’s large water droplets cut through the wind so water stays in the target zone without misting or fogging. An exclusive manual flush feature keeps nozzles clear of dirt and debris even in extreme conditions.

Nozzle Pattern Full circle
Nozzle Radius 24 ft
Nozzle Type High-efficiency, Rotary spray
Nozzle Series R-VAN
Specifications
  • Pressure Range: 30 to 55 psi (2,1 to 3,8 bar)
  • Recommended Operating Pressure: 45 psi (3,1 bar)
  • Spacing: 17' to 24'
  • Arc: 360°
  • Adjustments: radius should be adjusted while water is running


Pressure Range: 30 to 55 psi (2,1 to 3,8 bar)
Recommended Operating Pressure: 45 psi (3,1 bar)
Spacing: 17' to 24'
Arc: 360°
Adjustments: radius should be adjusted while water is running
