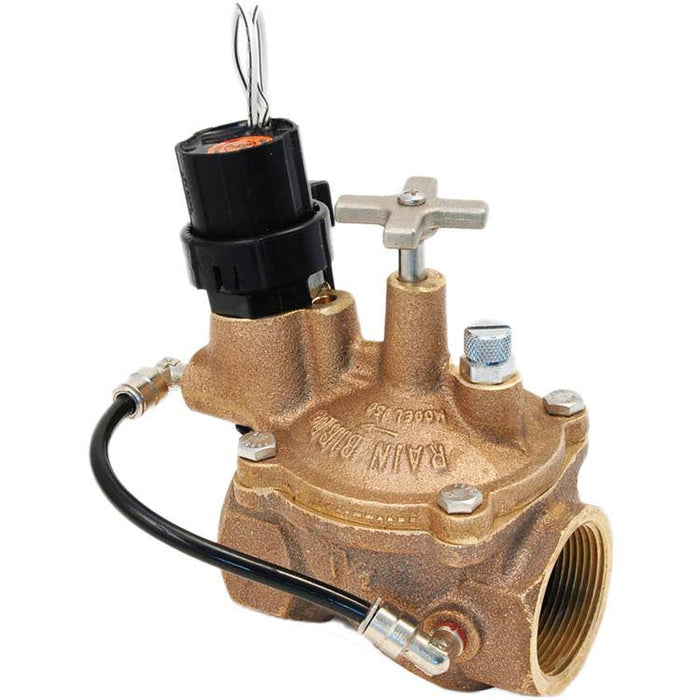

Rain Bird - 150EFBCP 24 VAC 1 1/2" Electric Brass Irrigation Valve

Spec Sheet

Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water? The EFB-CP's the one!

Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems.

EFB-CP Series valves offer long life and superior performance in high pressure applications.

Additional Features:

• Manual external bleed permits flushing debris from the system. Recommended for system start up and other repairs.
• Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
• Globe configuration.
• Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment.
• Purple handle cover included to designate non-potable water.
• Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6.9 bar)
• Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).

Compatible with ESP-LXD decoders.

• Valve Size: 1.5 in
• Valve Type: Inline
• Material: Brass
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Options: Decoder-system Compatible, Non-potable
• Valve Series: EFB-CP
• Operating Temperature: Up to 150° F (66° C)
• Dimensions: 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
• Electrical Specifications:
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 ohms
• Flow Range: With/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
• Operating Pressure: 15 to 200 psi (1,04 to 13,80 bar)

Model 150EFBCP
Valve Size 1.5 in
Valve Type Inline
Material Brass
Valve Inlet/Outlet Configuration NPT Female x NPT Female Threaded
Valve Options Decoder-system Compatible, Non-potable
Valve Series EFB-CP
Operating Temperature Up to 150° F (66° C)
Dimensions 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid

Inrush current: 0.41A (9.9VA)

Holding current: 0.14A (3.43VA)

Coil resistance: 30-39 ohms

Flow Range
With/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)

Operating Pressure 15 to 200 psi (1,04 to 13,80 bar)

Dimensions: 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
