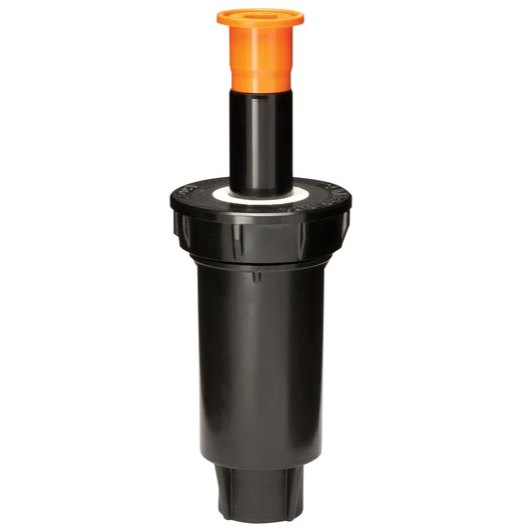

Rain Bird - 1802 2" 1800 Series Spray Head

• 2 in. 1800 Series pop-up spray head
• Strong stainless steel spring provides reliable stem retraction
• Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life

• Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment.
• Pressure-activated, multi-function seal design assures a positive seal without excess “flow-by” which enables more heads to be installed on the same valve.
• Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
• Two-piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
• Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
• All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.

• Nozzle Type: No Nozzle Included
• Spray Head Series: 1800 Series
• Dimensions:
• 4" (10,2 cm) body height; 2" pop-up height (5.1 cm)
• Exposed surface diameter: 2 1/4" (5.7 cm)
• Pop-up Height: 2 in

Model 1802
Nozzle Type No Nozzle Included
Spray Head Series 1800 Series
Dimensions
4" (10,2 cm) body height; 2" pop-up height (5.1 cm)

Exposed surface diameter: 2 1/4" (5.7 cm)

Pop-up Height 2 in
Specifications
Spacing: 3 to 24 feet (0.9 to 7.3m)

Pressure: 15 to 70 psi (1.0 to 4.8 bar).

Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.

4" (10,2 cm) body height; 2" pop-up height (5.1 cm)
Exposed surface diameter: 2 1/4" (5.7 cm)
Pop-up Height: 2 in
