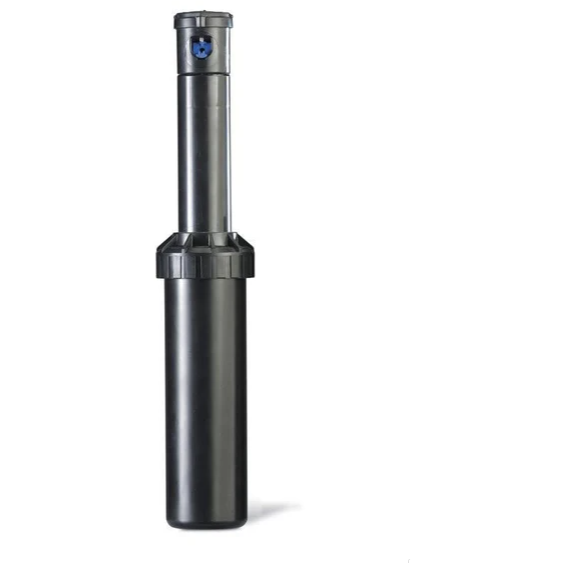

Rain Bird - 3504PCSAM 4" 3504 Series Part/Full-Circle Rotor Pop-Up w/ SAM

• 4 in. part/full-circle pop-up rotor sprinkler
• Top-adjust arc adjustment requiring only a flat-blade screwdriver
• 40- 360° Arc Part-Circle arc rotation and reversing Full-Circle rotation in one
• Attachable nozzle tree of six Rain Curtain nozzles
• Radius adjustment screw allows up to 35% radius reduction without changing nozzles
• Quick Check Arc/Fast Forward
• Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
• Self-adjusting stator does not require replacement when changing nozzles
• Water-lubricated gear-drive design for durable, reliable operation
• Easily removable filter screen
• Nozzle removal feature
• Arc setting factory preset at 180° for installation convenience

• Rotor Series: 3500
• Coverage Radius: 15-35 ft
• Inlet: 1/2 in
• Features: Gear Drive, Rain Curtain Nozzles
• Pop-Up Height: 4 in
• Specifications:
• Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)
• Radius: 15 to 35 feet (4,6 to 10,7 m). Radius may be reduced up to 35% with Radius Reduction Screw
• Pressure: 25-55 psi (1,7 to 3,8 Bars)
• Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)
• Reversing Full-and Part-circle adjustment 40° – 360°
• Coverage Arc: 40° - 360° Reversing Full and Part-Circle

Model 3504PCS
Rotor Series 3500
Coverage Radius 15-35 ft
Inlet 1/2 in
Features Gear Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles
Pop-Up Height 4 in
Specifications
Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)

Radius: 15 to 35 feet (4,6 to 10,7 m). Radius may be reduced up to 35% with Radius Reduction Screw

Pressure: 25-55 psi (1,7 to 3,8 Bars)

Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)

Reversing Full-and Part-circle adjustment 40° – 360°

Coverage Arc 40° - 360° Reversing Full and Part-Circle
