Spec Sheet

*One Solenoid Handle Per Order

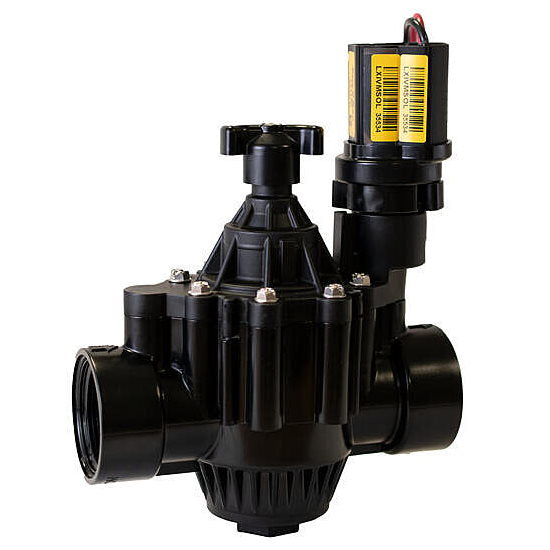

Best in Class Valves with Preinstalled IVM-SOL

Rain Bird PGA Series valves are now available with the Integrated Valve Module "smart solenoid" (IVM-SOL) preinstalled. The new IVM Smart Valves, when paired with the ESP-LXIVM Two-Wire controller, eliminate decoders resulting in 50% fewer wire splices, which reduces system cost and improves reliability. During operation, the IVM-SOL provides two-way communication between the valve and controller to provide advanced diagnostic capability and faster response time.

Best-in-Class Valves

  • With industry-leading reliability and performance, the Rain Bird PGA Series of commercial valves are now even better with preinstalled IVM-SOL

Next Generation Two-Wire System

  • The ESP-LXIVM Two-Wire Controller is the next leap forward—simplifying installation, improving reliability and enabling more troubleshooting features that save time

Performance and Reliability

  • With 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoder

Features

  • Globe and angle configuration for flexibility in design and installation
  • PVC and glass reinforced nylon construction
  • Filtered pilot flow to resist debris and clogging of solenoid ports
  • Slow closing to prevent water hammer and subsequent system damage
  • Manual internal bleed operates the valve without allowing water into the valve box
  • One-piece solenoid design with captured plunger and spring for easy servicing prevents loss of parts during field service
  • Non-rising flow control handle adjusts water flows as needed
  • Normally closed, forward flow design

Options (order separately)

  • Accommodates optional, field installed PRS-D pressure regulating module

Specifications:

  • Flow: 2 –150 gpm (0.45 to 34.05 m3/h; 7.8 to 568 l/m)
  • Flow with PRS-D: 5 –150 gpm (1.14 to 34.05 m3/h; 19.2 to 568 l/m)
  • Temperature: up to 110° F (43° C)
  • Ambient Temperature: up to 125° F (52° C)

Electrical Specifications

  • Power: 26.5 Vrms 50/60 Hz (cycles/sec)
  • Inrush current: <40mA (Peak)
  • Quiescent current: <0.4mA (ave.)
  • Voltage Range: 15.6 - 29.2 Vrms
  • Compatible with LXIVM controllers

Dimensions:

  • Height: 10"
  • Length: 5"
  • Width: 7.75"


Flow: 2 –150 gpm (0.45 to 34.05 m3/h; 7.8 to 568 l/m)
Flow with PRS-D: 5 –150 gpm (1.14 to 34.05 m3/h; 19.2 to 568 l/m)
Temperature: up to 110° F (43° C)
Ambient Temperature: up to 125° F (52° C)

Electrical Specifications

Power: 26.5 Vrms 50/60 Hz (cycles/sec)
Inrush current: &lt;40mA (Peak)
Quiescent current: &lt;0.4mA (ave.)
Voltage Range: 15.6 - 29.2 Vrms
Compatible with LXIVM controllers


Height: 10"
Length: 5"
Width: 7.75"
