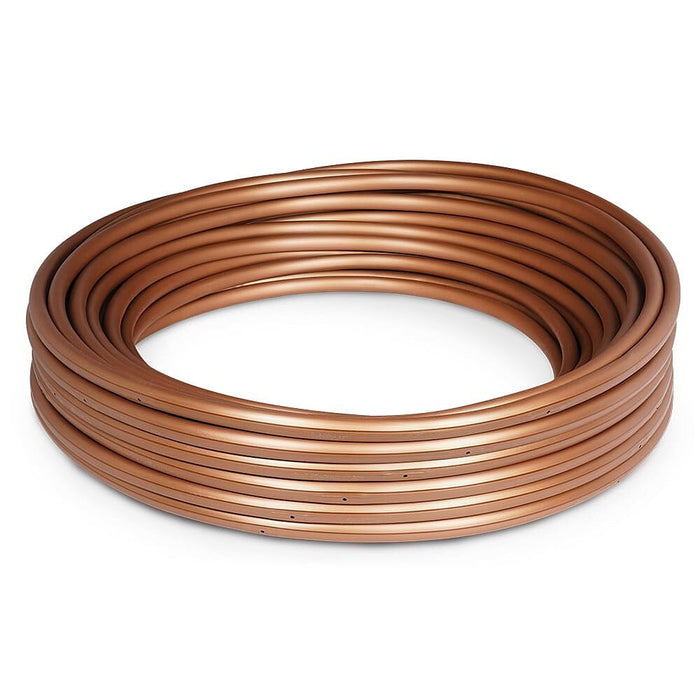

Rain Bird XFSCV0612250 Sub-Surface Dripline with Check Valves, 0.6 GPH 12” Spacing, 250 FT Coil

$ 130.90
SKU XFSCV0612250

Specification | Installation

With Copper Shield™ Technology and Heavy-Duty Check Valve

Rain Bird® XFS-CV Dripline with a heavy-duty 4.3 psi check valve for on-surface and sub-surface applications adds a valuable member to the Rain Bird XF Series of Dripline. The XFS-CV is the most effective dripline in the industry and is ideal for areas where no other dripline will work. When used in applications where elevation changes exist, the patent-pending check valve keeps the dripline charged, holding 10 feet of hold back - the highest holdback in the industry. Rain Bird's XFS-CV offers better uniformity and helps to prevent over-watering at the low-point in the zone, avoiding puddling and water draining from the dripline. With a pure copper chip inside every emitter, XFS-CV Dripline also offers the industry's most effective root intrusion protection.

It accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Barbed Insert Fittings and other 17 mm barbed insert fittings.

Simple

  • Rain Bird’s patent-pending 4.3 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
  • XFS-CV Sub-Surface Dripline emitters are protected from root intrusion by Rain Bird’s patent-pending Copper Shield™ Technology resulting in a system that does not require maintenance or replacement of chemicals to prevent root intrusion
  • Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design and reducing installation time
  • Variety of standard emitter flow rates, emitter spacing and coil lengths provide design flexibility for sub-surface and on-surface areas with or without elevation changes
  • Through the use of a proprietary tubing material, the XFS-CV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install

Made with Recycled Content

  • All Rain Bird XF Dripline (XFD, XFS, XFCV, XFS-CV) qualify for LEED credit 4.2 because they contain at least 20% Polyethylene post consumer recycled material by cost. These come in an assortment of coil sizes, flow rates and emitter spacing

Reliable

  • The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi

Durable

  • Dual-layered tubing (copper over black) provides unmatched resistance to chemicals, algae growth and UV damage

Grit Tolerant

  • Rain Bird’s proprietary emitter design resists clogging by use of an extra wide flow path combined with a self-flushing action

Operating Range

  • Opening Pressure: 14.5 psi
  • Pressure: 20 to 60 psi (1.38 to 4.14 bar)
  • Flow rates: 0.4, 0.6 and 0.9 gph (1.6, 2.3 and 3.5 l/hr)
  • Temperature:
  • -Water: Up to 100°F (37.8° C)
  • -Ambient: Up to 125°F (51.7° C)
  • Required Filtration: 120 mesh

Specifications

  • 12" & 18" (30.5 cm, 45.7 cm) spacing
  • Available in 100', 250' and 500' (30.5 m, 76.2 m and 152.4 m) coils
  • Coil Colors: Copper
  • Use with XF Dripline Insert Fittings

Dimensions

  • OD: 0.634" (16mm)
  • ID: 0.536" (13.6mm);
  • Thickness: 0.049" (1.2mm)
