Rain Bird - 1402 Pressure Compensating Bubbler Nozzle

Spec Sheet

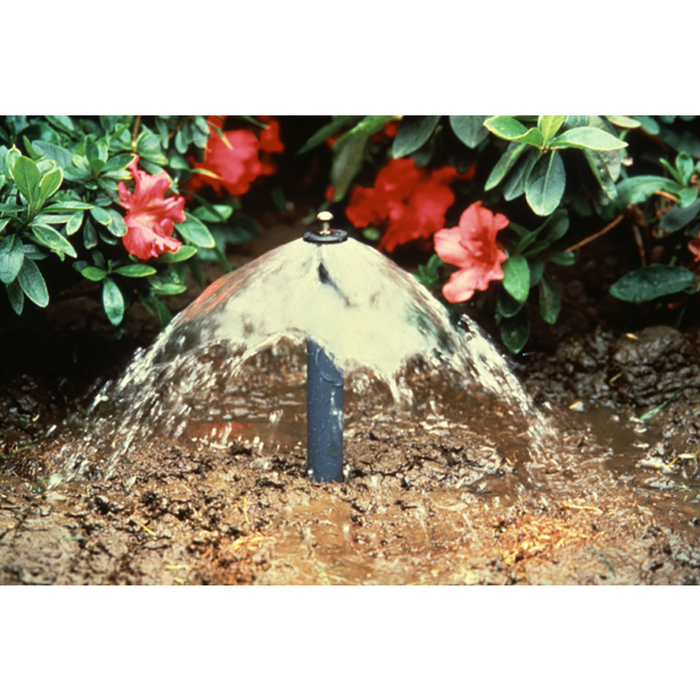

Rain Bird 1400 Series pressure compensating full circle bubblers provide a controlled, gentle umbrella of water for irrigating trees, flowers and shrub areas where pressure compensation is required.

Mount these bubblers on 1/2" male risers to effectively water areas from 1' to 3'.

• Reduces runoff.
• Flow will not fluctuate at pressures between 20 and 90 psi.
• Maintains even flow.
• Flow is not adjustable for increased vandal resistance.
• No adjustment required.
• Corrosion-proof plastic and rubber construction for long life.
• Shipped with special SR-050 1/2 Inch bubbler filter screen for easy installation and resistance to debris.
• Trickle pattern for the 1402 bubbler nozzle.

• Flow: 0.25 to 2.00 GPM (0,06 to 0,46 m3/h; 0,02 to 0,12 l/s)
• Spacing: 1 to 3 feet (0,3 to 0,9 m)
• Pressure: 20 to 90 psi (1,4 to 6,2 bar)
• 1/2 Inch female threaded inlet
• Height: 1 Inch (2,5 cm)
• Top diameter: 1 Inch (2,5 cm)

Specifications:

• Inlet Size: 1/2"
• Inlet Thread: Female Threaded
• Flow Control: 0.5 GPM
• Pressure Rating/Range: 20 - 90

Flow: 0.25 to 2.00 GPM (0,06 to 0,46 m3/h; 0,02 to 0,12 l/s)
Spacing: 1 to 3 feet (0,3 to 0,9 m)
Pressure: 20 to 90 psi (1,4 to 6,2 bar)
1/2 Inch female threaded inlet
Height: 1 Inch (2,5 cm)
Top diameter: 1 Inch (2,5 cm)
