Rain Bird - RD04SP30FN 4" RD1800 Series Spray Head With SAM Check Valve, 30 PSI Pressure Regulator, Flow-Shield, Non-Potable

Spec Sheet Install Manual

Legislation, growing demand and a limited potable water supply have increased our reliance on alternative water sources. As a result, water used for irrigation is harsher today than ever before. You told us you need a spray specifically suited for the most challenging environments. You also want a spray that will conserve water and provide years of worry-free performance. The new Rain Bird RD1800 Series Spray is proof that we’ve been listening.

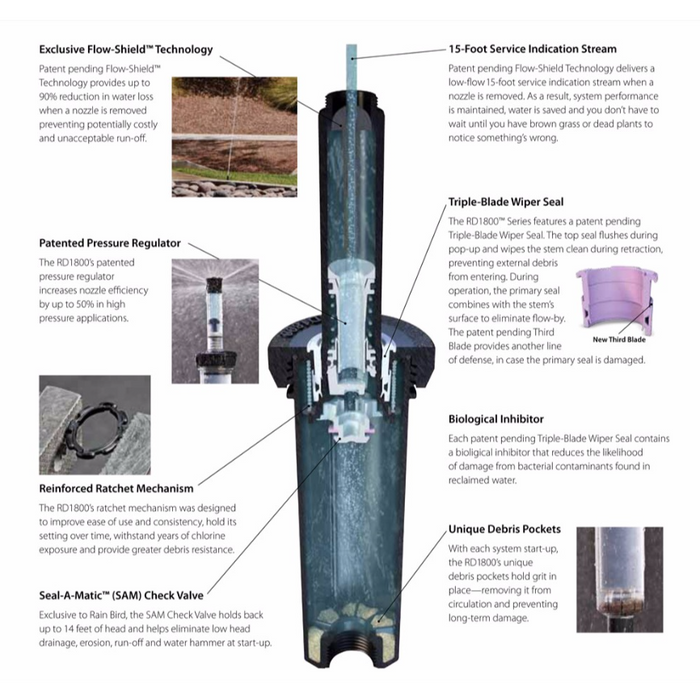

The Rain Bird RD1800’s exclusive Triple-Blade Wiper Seal prevents stick-ups. Its innovative design handles the thickest grit and most dramatic pressure variations with ease and its exclusive Flow-Shield Technology helps you identify and solve problems faster.

The Rain Bird RD1800 is available in both potable and non-potable versions.

Triple-Blade Wiper Seal

- With a patented Triple-Blade Wiper Seal that precisely balances flushing, flow-by and debris protection, RD1800 optimizes performance and durability in all soil types.

Flow-Shield Technology

- If a nozzle is ever broken or removed, patented Flow-ShieldTM Technology saves water by creating a low-flow service indication stream, letting you know there’s a problem before things get bad.

Debris Pockets

- Debris pockets in the base of the spray collect debris and grit to prevent recirculation, which provides a longer life. So, when other stems and nozzles become clogged with grit, the RD1800 remains clear.

Chlorine- and Chemical- Resistant Materials

- Exclusive models designed for non-potable water are made from the same durable plastics that are used in swimming pools, to outlast the unique challenges of recycled and reclaimed water. (Non-potable models only.)

Patented Purple Cap

Five-year trade warranty.

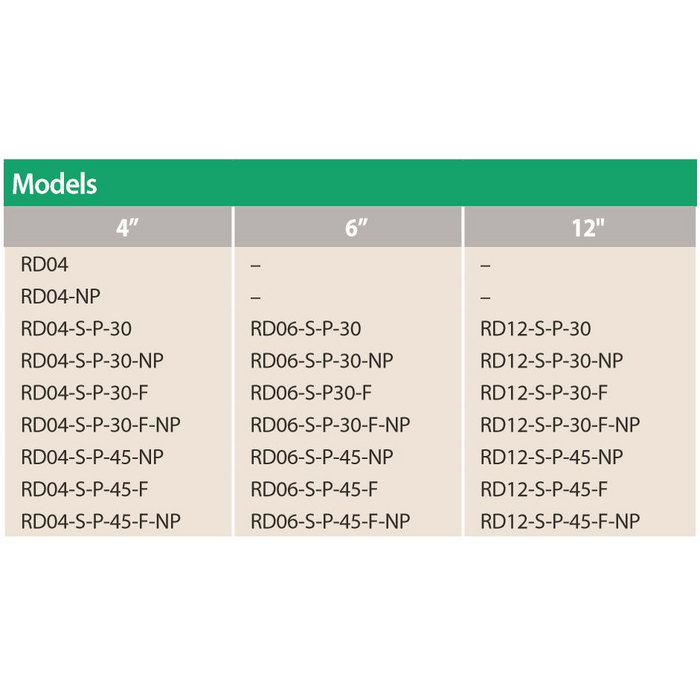

Model RD04SP30FN
Nozzle Type No Nozzle Included
Spray Head Series RD1800 Series
Dimensions
6" (15.2 cm) body height; 4" pop-up height (10.2 cm)

Exposed surface diameter: 2 1/4" (5.7 cm)

Pop-up Height 4 in
Features Flow Shield, Non-Potable / Reclaimed Water, PRS Pressure Regulating, SAM Seal-A-Matic Checkvalve
Specifications
Flow-by: 0 at 10 psi (0.7 bar) or greater; 0.5 gpm (0.1 m3/h; 0.03 l/s otherwise

Inlets: 1/2" (15/21) NPT female threaded

Operating Range
Spacing: 2.5 to 24 feet (0.8 to 7.3 m)

Pressure: 15 to 100 psi (1.0 to 6.9 bar)

Dimensions
6" (15.2 cm) body height; 4" pop-up height (10.2 cm)

Exposed surface diameter: 2 1/4" (5.7 cm)

Pop-up Height 4 in
