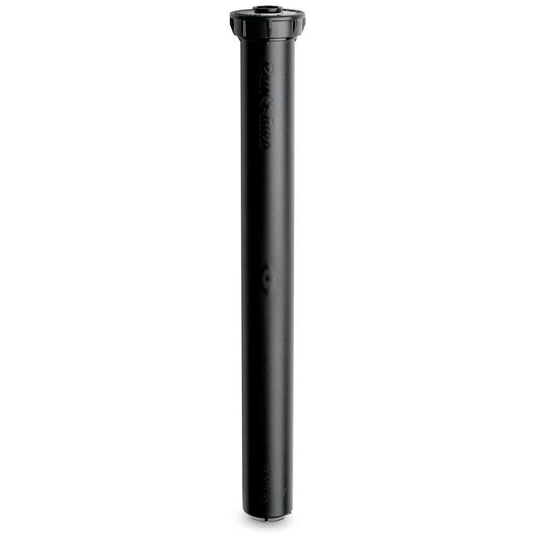

Rain Bird RD12SP30 12-Inch SAM 30 PSI Spray Body
Brand: Rain Bird | SKU: RD12SP30
Product Overview
Give a spray nozzle 12 inches of pop-up clearance with Rain Bird RD12SP30. This standard-cover RD1800 body combines a 30 psi regulator and SAM check valve without Flow-Shield. Check the 16-inch body depth and bottom-only connection before replacing a shorter sprinkler, and select the nozzle separately.
Key Features
- Triple-Blade Wiper Seal helps manage flushing and grit intrusion.
- Debris pockets help keep grit from recirculating inside the body.
- Reinforced ratchet ring supports nozzle-pattern alignment.
- Top-access internals simplify service.
- Built-in 30 psi pressure regulator.
- SAM check valve helps prevent low-head drainage across elevation changes up to 14 feet.
Common Uses
- spray-nozzle zones requiring a 12-inch pop-up stroke.
- Replacing a matching RD1800 body after checking depth, inlet fit, pressure target and features.
Technical Specifications
- Merchant SKU: RD12SP30; manufacturer designation: RD-12-S-P30.
- Pop-up body: RD1800 12-inch model; nozzle not included.
- Inlet: 1/2-inch female NPT; SAM model uses bottom inlet only.
- Manufacturer operating range for RD-12-S-P30: 15–100 psi.
- Regulator target: 30 psi; technical regulation range: 35–100 psi inlet. Adequate operating pressure and flow are required.
- SAM check-valve capability: up to 14 feet of elevation head.
- Flow-Shield option: not included.
- Water-use identification: standard cover.
- Watering arc, radius and flow depend on the separately selected nozzle and operating conditions.
Dimensions
- Body height: 16 inches.
- Pop-up height: 12 inches.
- Exposed surface diameter: 2-1/4 inches.
Compatibility & Installation Notes
Allow space for the 16-inch body and 12-inch pop-up stroke. Install at the appropriate finished grade and connect through the 1/2-inch female NPT bottom inlet.
Check pressure with the zone operating. The supply must support the 30 psi target and combined nozzle demand; a regulator cannot boost low supply pressure.
Select a compatible Rain Bird spray-head nozzle and its required filter screen. Flush before nozzling, align the stem with the ratchet and follow the nozzle’s own pattern and radius instructions.
The SAM check valve limits drainage after shutdown; it does not close a leaking upstream control valve.

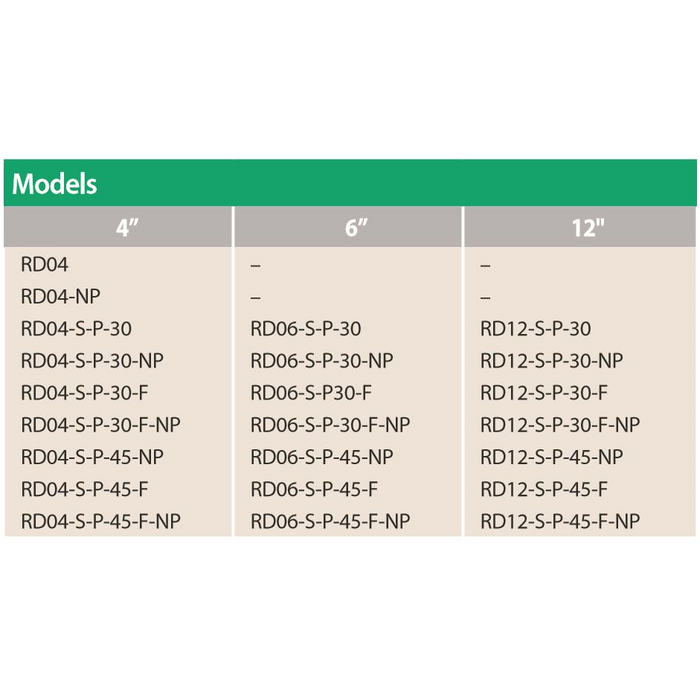

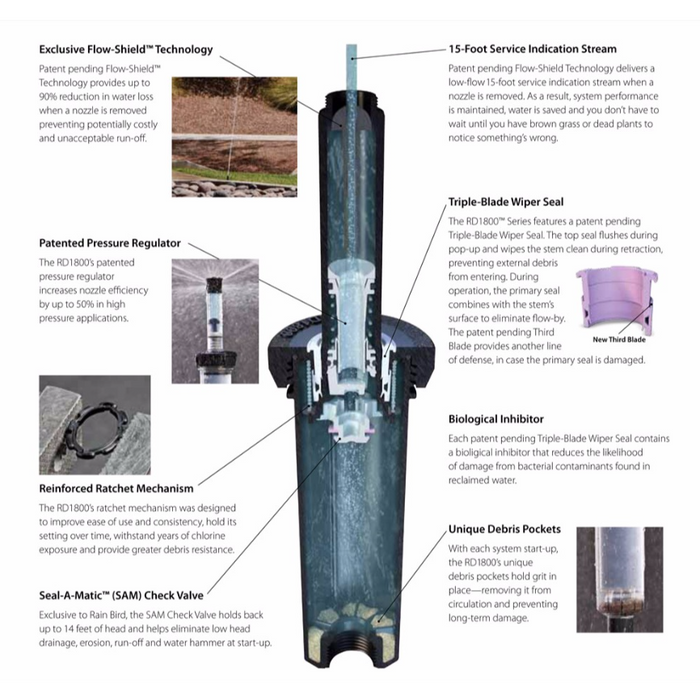

Family diagrams and videos show optional Flow-Shield and non-potable features. RD12SP30 has a standard cover and does not include Flow-Shield.
RD1800 Family Videos
Part 2: Not Afraid to Get Its Wiper Seal Dirty
Part 3: World's Toughest Spray
Part 4: Pressure Variations? No Sweat.
Part 5: Because Stuff Happens
Frequently Asked Questions
Does it include a nozzle?
No. Select a compatible nozzle and its required screen separately for the intended watering pattern and zone flow.
How much installation depth does it need?
The body is 16 inches tall and the pop-up stroke is 12 inches. Check both the below-grade space and the clearance needed above grade.
Does this model include Flow-Shield?
No. RD12SP30 includes SAM and 30 psi regulation without Flow-Shield. Choose a separately specified Flow-Shield model when that indication feature is required.
Can I connect it through a side inlet?
No. This SAM model requires its 1/2-inch female NPT bottom inlet.
