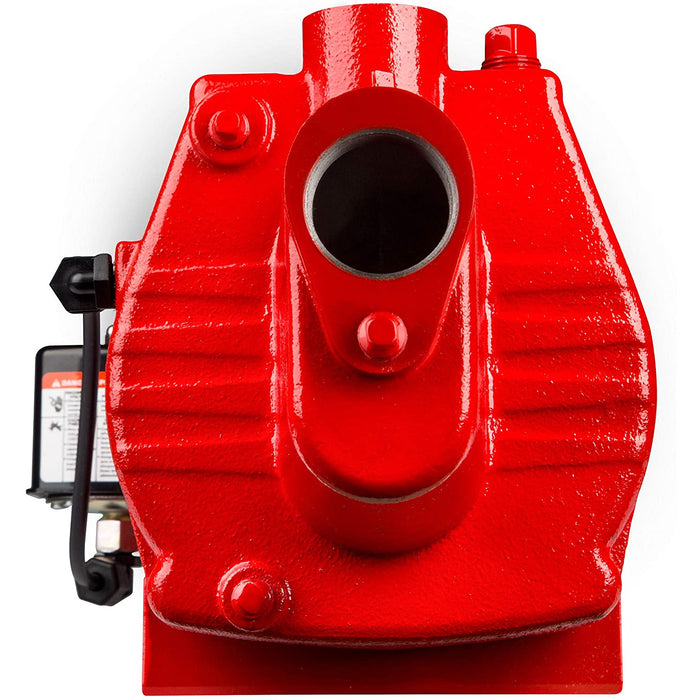

Red industrial pump on a white background

Red Lion RJS-75-PREM — 602207 ¾ HP Premium Cast-Iron Shallow Well Jet Pump

by Red Lion
SKU RJS-75-PREM
Sold out
$ 329.99 - $ 329.99
$ 329.99
$ 329.99 - $ 329.99
$ 329.99

Red Lion RJS-75-PREM — ¾ HP Premium Cast-Iron Shallow Well Jet Pump (602207)

The Red Lion RJS-75-PREM delivers powerful, dependable water pressure for homes drawing from wells up to 25 ft deep. Its cast-iron pump body, dual-voltage motor, and self-priming design make it ideal for irrigation, household supply, or light-duty farm applications.

Key Features & Benefits

  • ¾ HP motor provides higher flow and pressure for multi-fixture systems.
  • Cast-iron housing ensures durability and quiet, vibration-free operation.
  • Self-priming up to 25 ft after the initial prime for easy setup.
  • Dual-voltage 115/230 V motor fits standard residential wiring.
  • Factory-tested with a preset 30-50 PSI pressure switch for out-of-box reliability.

Applications

  • Residential water supply from shallow wells (≤ 25 ft)
  • Home and garden irrigation systems
  • Water transfer and tank filling applications

Specifications

Model / Item # RJS-75-PREM / 602207
Horsepower ¾ HP
Voltage / Amps 115/230 V • 10.4 A / 5.2 A
Maximum Suction Lift 25 ft
Maximum Pressure 68 PSI
Maximum Flow Rate 14.1 GPM @ 40 PSI
Inlet / Outlet Ports 1¼″ FNPT × 1″ FNPT
Construction Cast Iron Pump Body and Volute
Pressure Switch Preset 30-50 PSI

Performance and data based on the official Red Lion RJS-PREM manual.



Model Comparison

Model Horsepower Voltage / Amps Max Flow Max Pressure Lift Capacity Port Size (Suction × Discharge)
RJS-50-PREM ½ HP 115/230 V • 7.4 A / 3.7 A 10.6 GPM @ 40 PSI 66 PSI 25 ft 1¼″ × 1″
RJS-75-PREM ¾ HP 115/230 V • 10.4 A / 5.2 A 14.1 GPM @ 40 PSI 68 PSI 25 ft 1¼″ × 1″
RJS-100-PREM 1 HP 115/230 V • 13 A / 6.5 A 16.4 GPM @ 40 PSI 71 PSI 25 ft 1¼″ × 1″



Common Questions

Q: What’s the difference between the RJS-50, 75 and 100 models?
A: Horsepower and flow capacity increase with each model; the RJS-75-PREM balances high pressure with energy efficiency for mid-size homes.

Q: Can this pump be used for continuous irrigation?
A: Yes — it’s suitable for intermittent or continuous operation with clean water sources.

Q: Is it ready to use out of the box?
A: Yes. Each pump is factory-tested and includes a preset 30-50 PSI pressure switch.

Q: How deep can it lift water?
A: Up to 25 ft when properly primed.



The RJS-75-PREM offers the perfect middle ground between power and efficiency for reliable home water pressure and garden irrigation.

HP 3/4
Intake 1 1/4" FNPT
Discharge 1" FNPT
Amps/Volt
14.4A @ 115V
7.2A @ 230V

View Spec Sheet (PDF)
View Install Manual (PDF)
