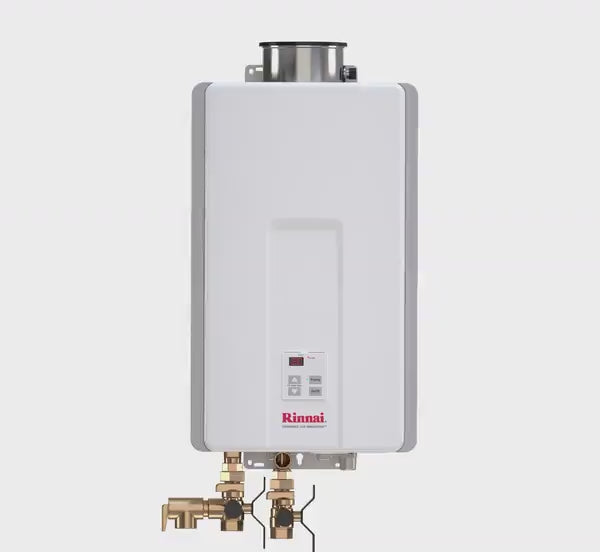

Rinnai V75iP Residential High Efficiency 7.5 GPM Indoor, Propane Tankless Water Heater, While supplies last (Replaced by RE180)

Spec Sheet  Install Manual

Current RL and 4 of the V models will be discontinued and replaced with the New RE•SERIES™ Non-Condensing models including the REP models with a Built-In Pump and Smart-Circ™ Intelligent Recirculation™

The High Efficiency (HE) Series V Models are the perfect combination of comfort and value. These easy-to-install, compact models combine all the reliability you’d expect from Rinnai with performance that’s ideal for medium- to smaller sized new homes or remodels.

Features

• Temperature controlled, continuous flow, gas hot water system
• Energy Factor of .82 for both Natural Gas and Propane
• Certified for Installation in Manufactured (Mobile) Homes
• Forced combustion
• For Indoor Use Only
• Complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels

Specifications

• Operation: Forced combustion
• Minimum/Maximum Gas Rate (Input): 10,300 - 180,000 BTU/h
• Electrical:
• Appliance: AC 120 Volts - 60 Hz
• Controller: DC 12 Volts
• Electrical Consumption:
• Normal: 57W
• Standyby: 2W
• Anti-Frost Protection: 104W
• Amperage: 4A
• Ignition System: Direct Electronic Ignition
• Hot Water Capacity:
• Minimum flow rate: 0.26 GPM
• Minimum activation flow rate: 0.4 GPM
• Maximum flow rate: 7.5 GPM
• Temperature: 98° - 120° F
• Temperature (without remote): 120° F (49° C) (factory default) or 140° F (60° C)

• Uniform Energy Factor (UEF): 0.81
• Service Connections:
• Gas supply: 3/4 inch MNPT
• Cold water inlet: 3/4 inch MNPT
• Hot water outlet: 3/4 inch MNPT
• Water Flow Control: Water flow sensor, electronic water control device and fixed by - pass.
• Minimum/Maximum Water Supply Pressure: 20 - 150 PSI
• Min. / Max. Gas Supply Pressure:
• Min 8” W.C. (10mbar) max 13.5” W.C. (26.1mbar)
• Manifold Gas Pressure:
• High Fire: 3.5" W.C.
• Low Fire: 0.80" W.C.

Safety Devices:

• Flame failure - Flame Rod
• Boiling protection
• Combustion fan rpm check
• Over current - glass fuse
• Remaining flame (OHS)
• Thermal fuse
• Automatic frost protection

Operation: Forced combustion
Minimum/Maximum Gas Rate (Input): 10,300 - 180,000 BTU/h
Electrical:
Appliance: AC 120 Volts - 60 Hz
Controller: DC 12 Volts
Electrical Consumption:
Normal: 57W
Standyby: 2W
Anti-Frost Protection: 104W
Amperage: 4A
Ignition System: Direct Electronic Ignition
Hot Water Capacity:
Minimum flow rate: 0.26 GPM
Minimum activation flow rate: 0.4 GPM
Maximum flow rate: 7.5 GPM
Temperature: 98° - 120° F
Temperature (without remote): 120° F (49° C) (factory default) or 140° F (60° C)
Uniform Energy Factor (UEF): 0.81
Service Connections:
Gas supply: 3/4 inch MNPT
Cold water inlet: 3/4 inch MNPT
Hot water outlet: 3/4 inch MNPT
Water Flow Control: Water flow sensor, electronic water control device and fixed by - pass.
Minimum/Maximum Water Supply Pressure: 20 - 150 PSI
Min. / Max. Gas Supply Pressure:
Min 8” W.C. (10mbar) max 13.5” W.C. (26.1mbar)
Manifold Gas Pressure:
High Fire: 3.5" W.C.
Low Fire: 0.80" W.C.

Product Height
26.9 in / (684 mm)
Product Width
14.04 in / (356.6 mm)
Product Depth
9.27 in / (235.5 mm)
Product Weight
45.6 lb / (20.7 kg)
Shipping Depth (inches/mm)
30 in / (762 mm)
Shipping Height (inches/mm)
30 in / (762 mm)
Shipping Width (inches/mm)
17.5 in / (445 mm)
Shipping Weight (lbs/kg)
49.6 lb / (22.5 kg)
