Rain Bird RISERCO6 1/2-Inch Cut-Off Riser

Brand: Rain Bird | SKU: RISERCO6

Product Overview

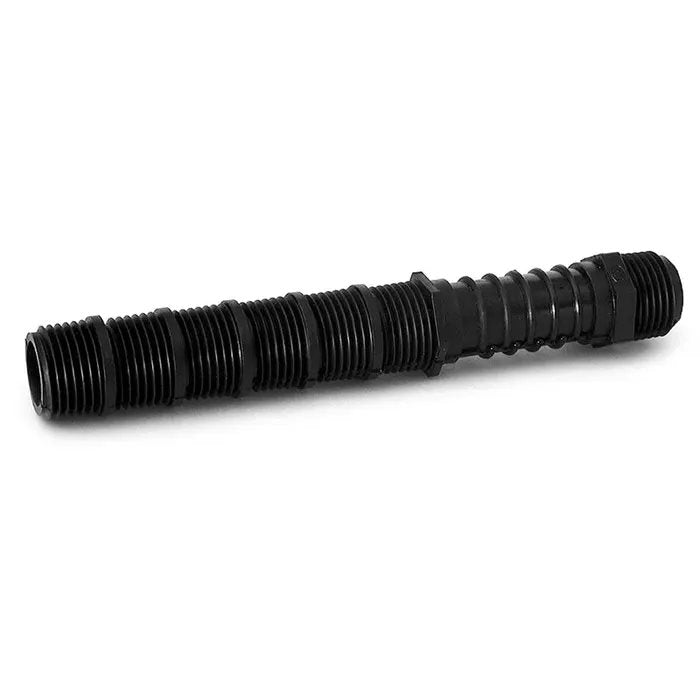

Set a sprinkler connection to the needed height with the black PVC Rain Bird RISERCO6 cut-off riser. This 6-inch class riser has 1/2-inch male pipe threads at both ends and multiple cut points. Cut at the appropriate step to create a shorter riser with a usable threaded end.

Key Features

  • Black PVC cut-off riser, manufacturer part N47200.
  • Nominal 1/2-inch male pipe threads at both ends.
  • Multiple cut points for selecting a shorter installation height.
  • For matching above-ground or underground irrigation connections.

Common Uses

  • Connecting a compatible sprinkler to a female-threaded water-supply fitting.
  • Choosing a shorter riser height in a planting bed or sprinkler repair.

Technical Specifications

  • Model: RISERCO6; manufacturer part N47200.
  • Material and color: black PVC.
  • Connections: nominal 1/2-inch male pipe thread at both ends.
  • Style: 6-inch class cut-off riser.
  • Manufacturer-listed cut-point heights: 1, 2, 3, 4.5, 5 or 6 inches.
  • Riser only; sprinkler, nozzle and supply fittings are separate.

Dimensions

  • Manufacturer-listed uncut product dimensions (W x H x D): 5.88 x 0.94 x 0.88 inches.

Compatibility & Installation Notes

Use matching 1/2-inch female pipe connections. Check the sprinkler or adapter’s actual inlet thread; nozzle threads and pipe threads are not universally interchangeable.

Select the required step before cutting. Use a hacksaw or pipe cut-off tool, remove loose debris and keep the starting threads clean. Allow for thread engagement when choosing the installed height.

Flush the supply before fitting the sprinkler and check the connection under operating pressure. Cutting is permanent; the riser does not telescope or extend again after trimming.

Frequently Asked Questions

What size are the threads?

Both ends use nominal 1/2-inch male pipe threads for matching female pipe connections.

How do I shorten it?

Cut at the required step with a hacksaw or pipe cut-off tool, then remove debris and keep the new starting threads clean.

Can I extend it again after cutting?

No. It is a cut-off riser, so trimming permanently removes length. Select the needed cut point before cutting.

Why Buy from Big Frog Supply?

Choose RISERCO6 when a matching 1/2-inch pipe connection needs a height you can set by cutting. Its stepped thread sections provide several cut points, while the black PVC construction suits the listed irrigation uses. Choose a fixed-length riser if you want an untrimmed connection at one specified length.

Model: RISERCO6; manufacturer part N47200.
Material and color: black PVC.
Connections: nominal 1/2-inch male pipe thread at both ends.
Style: 6-inch class cut-off riser.
Manufacturer-listed cut-point heights: 1, 2, 3, 4.5, 5 or 6 inches.
Riser only; sprinkler, nozzle and supply fittings are separate.

Manufacturer-listed uncut product dimensions (W x H x D): 5.88 x 0.94 x 0.88 inches.
