Brand: Intermatic | Base Manufacturer Part Number: T101 | Big Frog Supply SKU: T101-SD5
Scratch & Dent Condition
Condition Grade SD5: This item is fairly worn but remains functional. It may have significant cosmetic damage, including scratches, dents, worn corners, damaged packaging, or replacement packaging. Parts, accessories, or instruction manuals may be missing. Cosmetic condition and included nonessential components can vary from the product images.
Final sale: Scratch & Dent products are sold while supplies last and are not eligible for refunds or exchanges. Review the condition description and confirm the timer model before ordering.
Product Overview

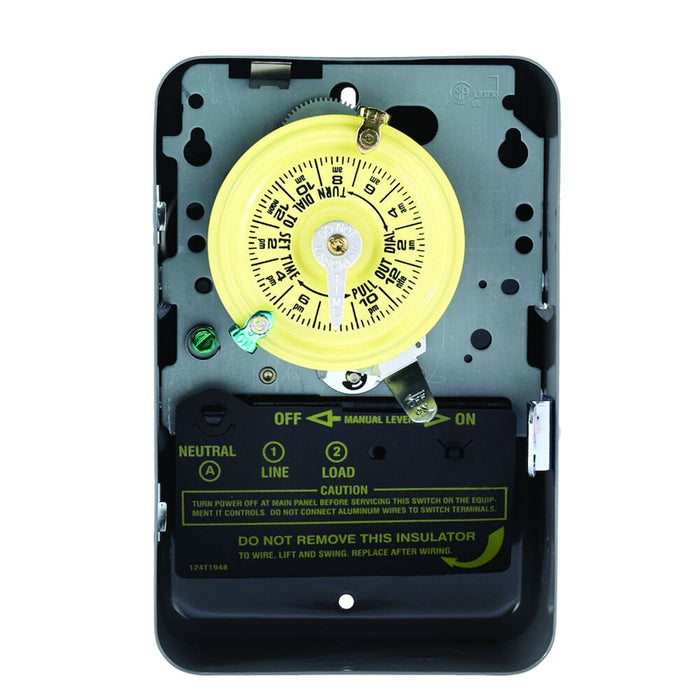

This Scratch & Dent Intermatic T101 is a complete 24-hour mechanical time switch with a 120 VAC SPST mechanism housed in a gray Type 1 indoor metal enclosure. It provides repeating daily control of one approved load and is commonly used for indoor lighting, motors, pumps, heaters, and other equipment within the timer’s electrical ratings. The mechanical dial supports up to 12 ON and 12 OFF operations each day with a minimum interval of one hour.
A manual override allows temporary control without moving the programmed trippers. The standard T101 includes one ON and one OFF tripper, but this SD5 unit may be missing parts, accessories, or printed instructions. Inspect the enclosure, mechanism, terminals, dial, trippers, and mounting components before planning the installation.
Key Features
- SD5 functional but fairly worn Scratch & Dent condition
- 120 VAC, 60 Hz mechanical time switch
- SPST switching for one load
- Up to 12 ON and 12 OFF operations per day
- One-hour minimum switching interval
- Manual override
- Gray Type 1 indoor metal enclosure
Common Uses
- Indoor lighting schedules
- Pump and motor control within listed ratings
- Electric heater scheduling
- General daily ON/OFF control
Technical Specifications
-
Base model: T101
-
Input voltage: 120 VAC, 60 Hz
-
Switch type: SPST
-
Circuits: One
-
Inductive and resistive rating: 40 A at 120 VAC
-
Motor rating: 2 HP at 120 VAC
-
Electronic ballast/LED rating: 16 A at 120 VAC
-
Minimum ON/OFF time: 1 hour
-
Standard tripper package: One ON and one OFF
-
Enclosure: Gray indoor Type 1 metal
Dimensions
-
Height: 7.875 inches
-
Width: 5.125 inches
-
Depth: 3.437 inches
Installation Notes
Inspect this SD5 item before installation and confirm that all required parts are present and undamaged. The Type 1 enclosure is intended for indoor locations and does not provide outdoor rain protection. Installation involves hazardous line voltage and should be performed by a qualified person with power disconnected and the connected load verified against the timer ratings.
Frequently Asked Questions
Is the T101 suitable for outdoor installation?
No. This version includes a Type 1 indoor metal enclosure.
Are the ON and OFF trippers guaranteed to be included?
No. The standard model includes one of each, but this SD5 item may be missing parts or accessories.
Can this item be returned?
No. This Scratch & Dent item is final sale and is not eligible for refunds or exchanges.
