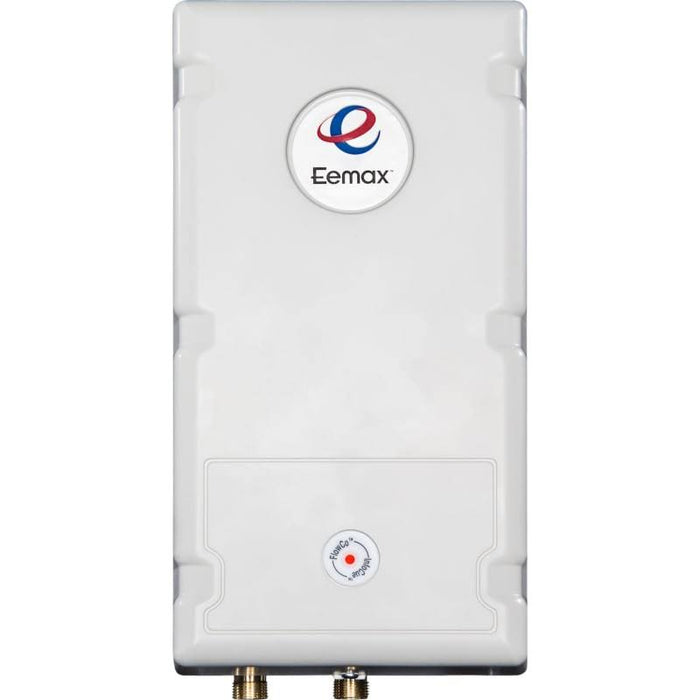

Choosing the right Tankless Electric Water Heater for your home.

FEATURES

  • Lowest activation in industry with 0.2 GPM turn on flow
  • Active energy management with power modulating controls
  • Microprocessor temperature control with digital display for thermostatic accuracy
  • Field adjustable set point range between 70-140 F. Factory set at 120 F (3.5kW and below set at 105 F). Special settings of higher or lower range available based on options
  • Silent Operation (except for SPEX0122240T)
  • Mounts in any orientation
  • Flow meter activates heater only on demand (no standby heat loss)
  • Install unit at point-of-use to eliminate long pipe runs
  • Eliminate costly mixing valve
  • Compact size fits almost anywhere for flexible installation; suitable for ADA compliant facilities
APPLICATIONS
  • Lavatory sinks
  • Multi lav configurations ideal for sensor or metering faucets (ML option - 110 F max.)
  • Emergency eye wash fountains (EE option - 90 F max.)
?INSTALLATION
  • Sizing - Size based on performance and not electrical infrastructure. Three key factors, incoming water temperature, water volume, and desired outlet temperature.
  • Electrical - All Eemax Tankless Water Heaters are designed to be hardwire to a dedicated circuit breaker and are not supplied with a cord and plug
  • Mounting - This family of Eemax products can be mounted in any orienation. Inlet is on the right of the unit and outlet is on the left. This can not be reversed.
  • Local Codes - Please check all applicable codes, national and local to ensure compliance both on the plumbing and electrical installation




Electrical Specifications
Power: 3.5kW
Volts: 120V
Phase: 1
Amperage: 29
Recommended Wire Size: 10
Performance Specifications
GPM Turn On: 0.3
Physical Max Volume: 0 gpm
Minimum Operating Temp: 0
Max Operating Temp: 0
Minimum Operating Pressure: 0 PSI
Max Pressure Rating: 150 PSI

Physical Specifications
Height: 10 inches
Width: 5 inches
Depth: 3 inches
Weight: -AG2121
Color: White
Cover Material: ABS-UL 94 V-0 Rated+AH2138:AI2138
