Product Overview

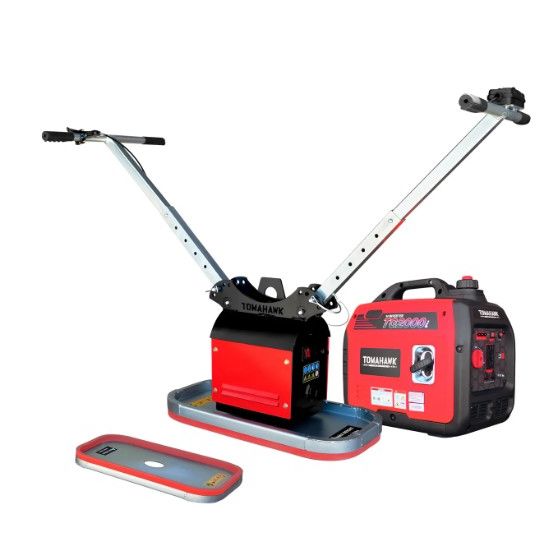

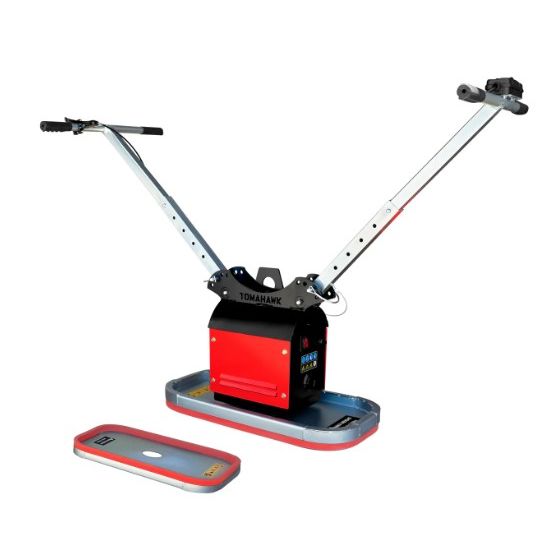

The Tomahawk Power TVL440 + TG2000i bundle pairs the TVL440 electric paver slab vacuum lifter with the 2000W mobile power supply option for hardscape crews that need portable lifting power on residential and commercial jobsites. The TVL440 is designed to help lift and place pavers, concrete slabs, natural stone, porcelain slabs, flagstone, clay brick, retaining wall block, masonry materials, and other compatible hardscape materials with better control and less manual strain. Built with a 1200W high-flow vacuum system, 120V/60Hz operation, push-button vacuum activation and release, and up to 440 lb max lift capacity when used with the proper pad, this bundle is a practical material-handling setup for paver installation, slab placement, stonework, patios, walkways, and outdoor living projects.
Key Features:
-
TVL440 + TG2000i Bundle: Selected variant includes the 2000W mobile power supply option for portable jobsite power support.
-

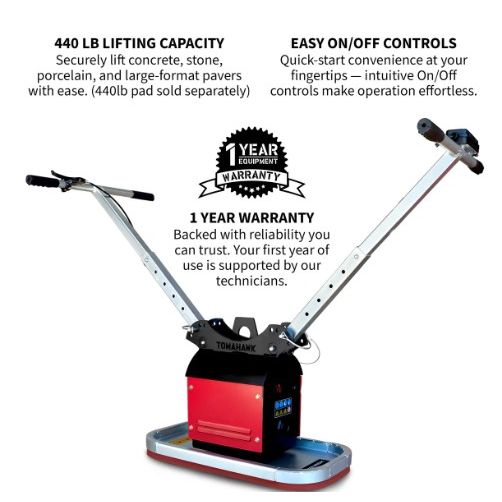

440 lb Max Lift Capacity: Tomahawk lists the TVL440 with a maximum lift capacity of 440 lb / 200 kg when used with the correct lifting pad and material conditions.
-
1200W Electric Motor: Powerful electric vacuum motor provides fast suction for lifting compatible stone, concrete, pavers, and hardscape materials.
-
120V / 60Hz Operation: Runs from standard 120V power, compatible generator power, or the included mobile power supply when properly set up.
-

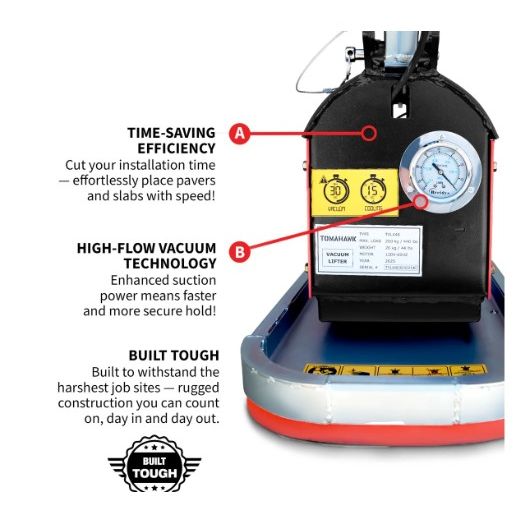

High-Flow Vacuum System: Designed to grip dense and semi-porous materials such as concrete, bluestone, textured pavers, porcelain slabs, and natural stone.
-
Push-Button Controls: Simple vacuum activation and release controls help operators lift, position, and release materials with better control.
-
2 Second Suction Preparation: Tomahawk lists suction preparation time at approximately 2 seconds for fast jobsite placement.
-

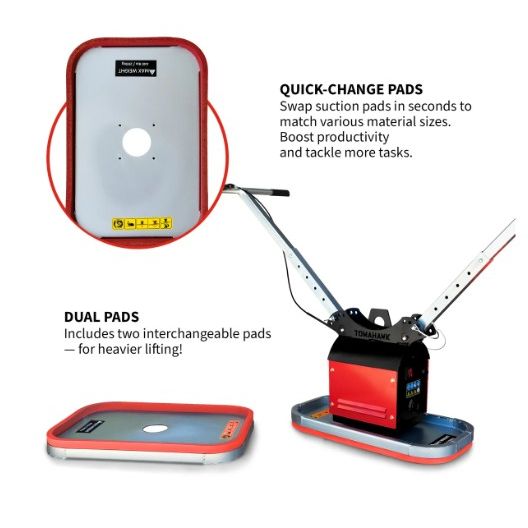

Quick-Change Lifting Pads: Included pad sizes support multiple slab and paver sizes for hardscape installation.
-
Reduced Manual Lifting: Helps lower strain on backs, knees, hands, and shoulders during repetitive hardscape material placement.
-
Excavator Hook Compatible: Tomahawk lists compatibility with an excavator with lifting hook for controlled material placement support.
-
Base Pad Set Included: Includes a 12" x 16" pad rated 210 lb and a 12" x 24" pad rated 330 lb.
Technical Specifications:
-
Model: TVL440 + TG2000i
-
Product Type: Electric Paver Slab Vacuum Lifter Bundle with Mobile Power Supply
-
Brand: Tomahawk Power
-
Selected Variant: Add 2000W Mobile Power Supply: Yes / Add 24X16 Lifting Pad (440lb Capacity): No
-
Vacuum Lifter Model: TVL440
-
Mobile Power Supply: TG2000i / 2000W mobile power supply included with selected variant
-
Max Lift Capacity: 440 lb / 200 kg
-
Vacuum Type: High-flow vacuum system
-
Motor: 1200W
-
Voltage: 120V / 60Hz
-

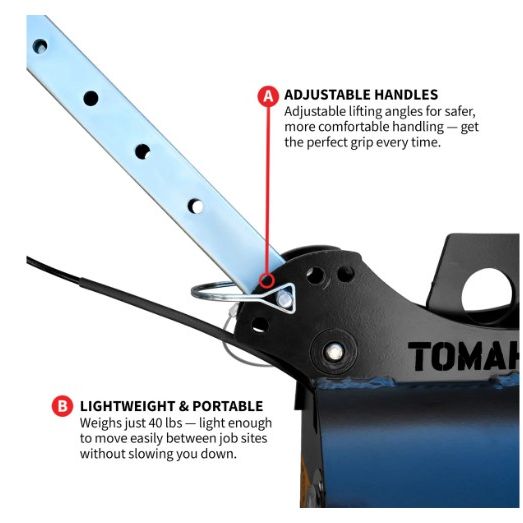

Weight Without Pad: 40 lb / 18 kg
-
Time to Prepare Suction: 2 seconds
-
Suction Time: 30 seconds
-
Cooling Time: 15 seconds
-
Controls: Push-button vacuum activation and release
-
Compatible Equipment: Excavator with lifting hook
-
Included Lifting Pad: 12" x 16" / 300 x 400 mm pad rated 210 lb / 95 kg
-
Included Lifting Pad: 12" x 24" / 300 x 600 mm pad rated 330 lb / 150 kg
-
Optional / Not Included on This Variant: 16" x 24" / 405 x 600 mm pad rated 440 lb / 200 kg
Package Includes:
-
TVL440 Vacuum Lifter: Electric paver slab vacuum lifter with 1200W motor and push-button vacuum controls.
-
TG2000i Mobile Power Supply: 2000W mobile power supply included with this selected variant.
-
12" x 16" Lifting Pad: 300 x 400 mm pad rated for 210 lb / 95 kg lifting capacity.
-
12" x 24" Lifting Pad: 300 x 600 mm pad rated for 330 lb / 150 kg lifting capacity.
-
Not Included: 16" x 24" lifting pad rated 440 lb / 200 kg unless the upgraded lifting pad option is selected.
-
Manuals & Guides: Follow Tomahawk’s specifications sheet and operations manual for power setup, pad selection, suction testing, lifting, release, storage, and maintenance.
Applications:
-
Paver Installation: Lifts and places large-format pavers, clay bricks, porcelain slabs, and permeable pavers with improved control.
-
Concrete Slab Placement: Helps handle dense concrete slabs for sidewalks, patios, walkways, and foundation work.
-
Natural Stone Handling: Supports lifting granite, bluestone, flagstone, marble, and other stone materials used in custom landscapes.
-
Retaining Wall Block Placement: Helps move large masonry and hardscape blocks faster and with less manual strain.
-
Tile & Masonry Installation: Helps place oversized tiles, masonry veneer, and large wall or floor materials with reduced breakage risk.
-
Landscape Construction: Useful for garden paths, outdoor kitchens, patios, fire pits, pool decks, and decorative stone layouts.
-
Countertop & Surface Handling: Helps lift and position finished stone, granite, or quartz countertops with reduced risk of chipping when material and suction conditions allow.
-
Driveway & Sidewalk Construction: Helps set patterned stone, stamped concrete units, decorative blocks, and high-traffic hardscape materials.
-
Commercial Hardscape Projects: Useful for plazas, walkways, park renovations, public spaces, and larger paver jobs where material handling efficiency matters.
-
Backyard DIY Projects: Helps homeowners and installers upgrade patios, fire pits, pool decks, walkways, and outdoor living spaces.
-
Tombstone & Monument Installation: Helps lift and position memorial stones or monuments more carefully when material surface and weight are compatible.
-
Remote Hardscape Jobsites: Included mobile power supply helps support lifting work where nearby outlet access is limited.
Operation & Use Notes:
-
Selected Variant Note: This listing is for TVL440 + TG2000i with the 2000W mobile power supply included and the 24X16 / 16" x 24" 440 lb lifting pad not included.
-
Pad Capacity Matters: The lifter may be rated up to 440 lb, but actual lifting capacity depends on the pad used. The included 12" x 16" pad is rated 210 lb and the included 12" x 24" pad is rated 330 lb.
-
Use Correct Pad for Load: Do not lift a load heavier than the pad’s rated capacity, even if the lifter body has a higher max lift rating.
-
440 lb Pad Not Included: To use the full 440 lb rated pad capacity, the 16" x 24" / 405 x 600 mm pad must be selected or purchased separately if available.
-
Material Surface Check: Test suction before each lift. Porous, dusty, wet, cracked, uneven, textured, chipped, or dirty surfaces can reduce suction hold.
-
Clean Surface Before Lifting: Remove dust, grit, sand, water, mud, sealers, loose chips, and debris from the lifting area before attaching the pad.
-
Suction Test Required: Confirm full vacuum hold before raising or moving any paver, slab, stone, block, countertop, or panel.
-
Lift Time Awareness: Tomahawk lists suction time at 30 seconds and cooling time at 15 seconds. Plan lifts and placements accordingly.
-
Power Supply Setup: Follow Tomahawk’s instructions for connecting the TVL440 to the TG2000i mobile power supply. Keep power connections dry and protected.
-
Electrical Safety: Keep cords and connections away from standing water, sharp stone edges, traffic, pinch points, and moving equipment.
-
Mobile Power Supply Safety: Follow all TG2000i operating, charging/fueling, ventilation, storage, and load-limit instructions. Do not overload the power supply.
-
Excavator Hook Use: When using with an excavator lifting hook, follow all equipment, rigging, load-control, and operator safety requirements.
-
No Overhead Lifting: Do not lift loads over people. Keep hands, feet, and bystanders clear of suspended materials and pinch points.
-
Controlled Placement: Move slowly and keep the load low whenever possible. Avoid swinging, dragging, shock loading, or sudden release.
-
PPE Required: Wear gloves, eye protection, steel-toe boots, and jobsite PPE when handling pavers, slabs, concrete, stone, and masonry materials.
-
Inspect Before Use: Check suction pads, seals, handle, motor, power cord, controls, power supply, and lifting hook connection before each use.
-
Do Not Use on Unsafe Materials: Do not use on loose, crumbling, unstable, severely uneven, fractured, or contaminated materials that cannot hold vacuum safely.
-
California Proposition 65: This product carries a California Proposition 65 warning.
Frequently Asked Questions
What is the Tomahawk TVL440 + TG2000i used for?
The TVL440 + TG2000i bundle is used for lifting and placing pavers, concrete slabs, natural stone, porcelain slabs, flagstone, retaining wall blocks, masonry materials, countertops, monuments, and hardscape materials where portable power support is helpful.
What is included in this selected variant?
This selected variant includes the TVL440 vacuum lifter, TG2000i 2000W mobile power supply, 12" x 16" lifting pad rated 210 lb, and 12" x 24" lifting pad rated 330 lb.
Is the 440 lb lifting pad included?
No. The selected variant shows Add 24X16 Lifting Pad (440lb Capacity): No. The 16" x 24" / 405 x 600 mm pad rated 440 lb / 200 kg is not included unless that upgraded option is selected.
What is the maximum lift capacity?
Tomahawk lists the maximum lift capacity at 440 lb / 200 kg. Actual lifting capacity depends on the lifting pad used and the material’s surface condition.
What pads are included?
The included pad set includes a 12" x 16" / 300 x 400 mm pad rated 210 lb / 95 kg and a 12" x 24" / 300 x 600 mm pad rated 330 lb / 150 kg.
What motor does the TVL440 use?
Tomahawk lists the TVL440 motor at 1200W.
What voltage does the TVL440 use?
Tomahawk lists the voltage at 120V / 60Hz.
How fast does it prepare suction?
Tomahawk lists time to prepare suction at 2 seconds.
How long is the listed suction time?
Tomahawk lists suction time at 30 seconds, with a 15 second cooling time.
How much does the lifter weigh?
Tomahawk lists weight without pad at 40 lb / 18 kg.
Can it lift porous materials?
Tomahawk states the lifter is engineered to grip dense and semi-porous surfaces, including bluestone, concrete, textured pavers, and more. Always test suction before lifting.
Can it be used with an excavator?
Tomahawk lists compatibility with an excavator with lifting hook. Follow all equipment, rigging, load-control, and operator safety requirements.
Why We Like It:
The Tomahawk Power TVL440 + TG2000i bundle is a better fit than the base lifter for hardscape crews working where outlet access is limited. The included 2000W mobile power supply, 1200W high-flow vacuum system, 120V operation, 440 lb max lifter rating, push-button vacuum activation and release, 2 second suction preparation time, included 210 lb and 330 lb pads, and excavator hook compatibility make it a practical setup for paver installation, concrete slab placement, natural stone handling, retaining wall block work, patios, walkways, monuments, countertops, and commercial hardscape projects.
