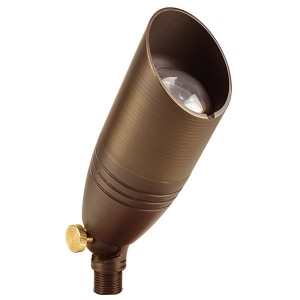

One of the most resourceful fixtures in the Odyssey line the Pulsar offers style and function without compromise. Its sleek straight lines, lock and load shroud feature and accessories make the Pulsar an essential fixture when lighting queen palms, trees, columns or any other tall structure.
Body:
Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket:
High-temperature silicone o-ring for a water-tight seal.
Knuckle:
Machined brass knuckle with a solid brass adjustable thumb screw. The vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud:
Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.
Lens:
Comes with a complete set of optical designer lenses including a spread lens, frosted lens, and hex cell lens.
Lamp:
For use with FLEX GOLD Series LED lamps available in 3W, 4W, 5W, 8W MR16. LED lamps are available in 2700K and 3000K color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W.
Electrical Requirements:
A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD Series LED lamps is 10V-15V.
Lamp Connection:
Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring:
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake:
?The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
LAMP:
For use with FLEX GOLD Series LED lamps available in 3W, 4W, 5W, 8W MR16. LED lamps are available in 2700K and 3000K color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W.
ELECTRICAL REQUIREMENTS:
A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD Series LED lamps is 10V-15V.
