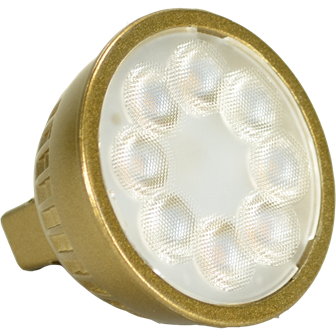

Unique Lighting Systems - LED-5W-BM6F-RGB30 Flex Gold Vivid Series MR16-Gen 2 (2nd Gen), 3000K

Spec Sheet  Install Manual

Whether you are subtly illuminating an elegant pathway for a desired effect, or reaching for the tree top, FLEX GOLD™ Vivid Series LED lamps provide the solution. With our wide range of wattages and beam spreads the FLEX GOLD™ Vivid Series can fully illuminate any project. Unique Lighting Systems offers the highest wattage lamp in the industry, so nothing is out of reach.

Features:

• 80 % more efficient than halogen equivalent

• LED produces zero UV

• Mercury free

• 82 or above CRI (Color Rendering Index)

• Red - Lightwave 600NM

• Green - Lightwave 553NM

• Blue - Lightwave 468NM

• Rated for outdoor use in an enclosed fixture.


Specifications:

• Wattage:  5W
• Beam Spread:  40 Degrees
• Kelvin Temperature: 3000k or/Red/Green/Blue adjustability
• Rated Life (hours):  25,000
• Operating Temp:  -4° F to 122° F
• CRI: 82
• Dimming:  Dimmable from 10 to 410 lumen
• Warranty (years):  5
• Lumens:  460
• Volt Amps:  8.21

Wattage 5W
Beam Spread 40°
Kelvin Temp.
2700k or/Red/Green/Blue adjustability
3000k or/Red/Green/Blue adjustability

VOLTAGE RANGE: 10 -15 VAC
LUMEN: Dimmable from 10 to 420 lumen
LAMP LIFE: 25,000 hr.
BEAM SPREAD: 40° Flood
VOLT AMPS: 6.4
Operating Temp. -4° F to 122° F
CRI 82
Rating Rated for outdoor use in an enclosed fixture.
Warranty Five year warranty


Part Number Lumen Volt Amps Beam Angle Color Temp.
LED-5W-BM6F-RGB27 430 7.98 40° 2700K
LED-5W-BM6F-RGB30 460 8.21 40° 3000K
