Spec Sheet

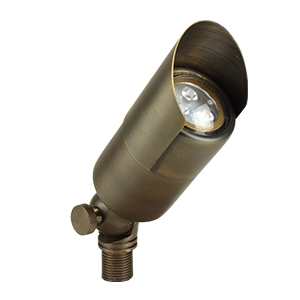

The Valor offers style and function without compromise. Its sleek straight lines and dual o-ring shroud feature make the Valor an essential fixture when lighting trees, columns or other tall structures.
Body:
Precision formed from brass. Body design provides enclosed, water resistant wireway to protect wires.
Gasket:
High temperature silicone o-ring (2) for water-tight seal.
Knuckle:
Machined brass knuckle with a solid brass adjustable thumb screw. Vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud:
Precision formed and comes with a factory sealed shock resistant tempered glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.
Lens:
Factory sealed shock resistant tempered glass lens.
Electrical Requirements
A remote 12V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX GOLD Series LED 3W, 4W, 5W, 8W MR16 lamps is 10V-15V.
Lamp Connection:
Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring:
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Hardware:
Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
