Spec Sheet

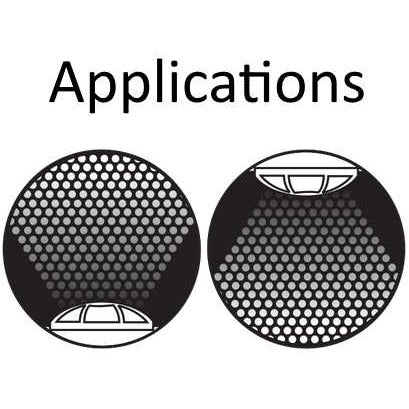

The Voyager 8 is a classic recessed step light. Perfect to illuminate stairs, benches, short retaining walls and other niche locations,

Materials:

Crafted from cast brass and PBT injection molded housing.

Body:

Fully cast brass faceplate. PBT injection molded housing.

Faceplate:

Fully cast brass. Three options; louvered, hood and open face.

Lens:

Shock resistant, frosted or clear, depending on faceplate option.

Lamp:

For use with two (2) FLEX GOLD Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with up to two (2) 20-watt Astro-Brite lamps.

Electrical Requirements:

A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD Series T3 LED lamps is 10V-15V.

Socket:

Specification grade, beryllium copper lamp holder. GU5.3 base.

Wiring:

Exclusive UF Intelli-Flex wire with anti-moisture migration connections.

Mounting Hardware:

Mounting screws and anchors with foam leveling gasket.

LAMP:
For use with two (2) FLEX GOLD Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with up to two (2) 20-watt Astro-Brite lamps.

ELECTRICAL REQUIREMENTS:
A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD Series T3 LED lamps is 10V-15V.
