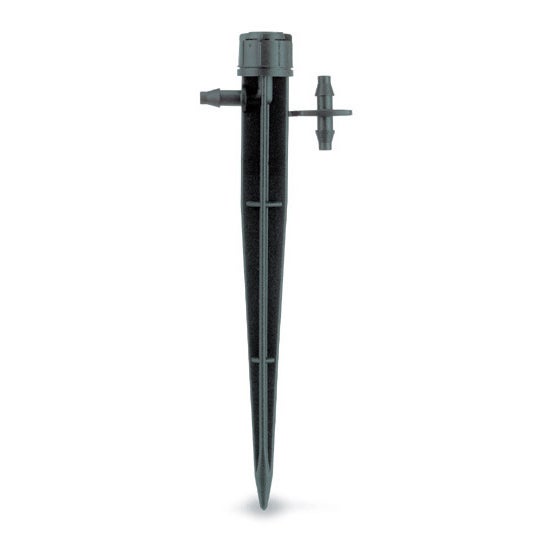

Rain Bird UXB360SPYK Full-Circle Umbrella Xeri-Bubbler with 5-Inch Spike
Brand: Rain Bird | SKU: UXB360SPYK
Product Overview
Place a gentle umbrella-style watering pattern near a shrub, tree or container with the Rain Bird UXB360SPYK. This full-circle Xeri-Bubbler comes on a 5-inch spike with a barb coupler for a 1/4-inch distribution line. Turn the outer cap to adjust flow and coverage to suit the planting.
Key Features
- Full-circle umbrella pattern for localized watering.
- Outer-cap adjustment controls flow and watering reach.
- Removable cap provides access for cleaning.
- Spike supports the bubbler at the plant; included barb coupler connects the distribution line.
Common Uses
- Localized watering around shrubs, trees and flower-bed plants.
- Container plantings where a small umbrella pattern suits the available space.
Technical Specifications
- Merchant SKU: UXB360SPYK; manufacturer model: UXB-360-SPYK.
- Pattern: full-circle, 360° umbrella bubbler.
- Connection: 1/4-inch tubing barb on spike assembly; includes a barb × barb coupler.
- Operating pressure: 15–30 psi.
- At 30 psi: adjustable flow up to 35 gallons per hour (GPH). Maximum flow changes with inlet pressure.
- At 30 psi: manufacturer chart lists an adjustable wetted diameter up to 2 feet. This is coverage diameter, not radius.
- Flow and coverage are adjusted by turning the outer cap.
Dimensions
- Manufacturer-specified spike length: 5 inches.
Compatibility & Installation Notes
Connect the bubbler spike to compatible 1/4-inch distribution tubing and use the included barb coupler at the supply connection. The manufacturer installation detail shows this arrangement supplied from suitable polyethylene tubing.
Provide appropriate filtration and pressure control for the drip system, then adjust with water running. Check the actual wetting pattern at the plant; this adjustable bubbler does not deliver a fixed pressure-compensated emitter rate.
For cleaning, shut off water and fully unscrew the cap from the base. Refit the cap and check the adjustment after cleaning.

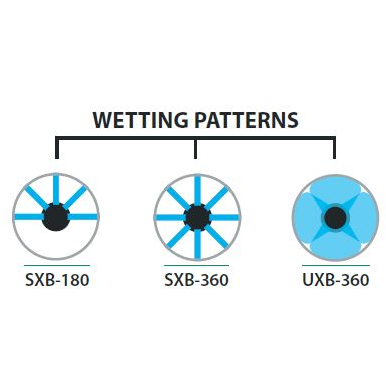

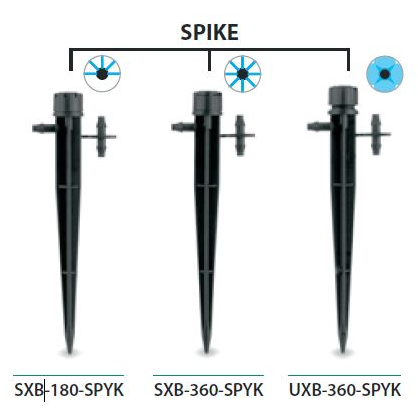

Select UXB360SPYK for the umbrella pattern. The separate SXB models produce individual streams; the threaded UXB-360 and barb-only UXB-360-025 are different mounting options.
Frequently Asked Questions
Is the maximum flow 35 GPM or 35 GPH?
It is 35 GPH at 30 psi: gallons per hour. The maximum depends on inlet pressure and the cap setting.
Does it produce eight individual streams?
No. UXB360SPYK produces a full-circle umbrella pattern. The SXB-360 family uses eight individual streams.
How does it connect to the system?
The spike assembly connects to compatible 1/4-inch distribution tubing and includes a barb × barb coupler for the supply connection.
Is the 2-foot coverage figure a radius?
No. At 30 psi, Rain Bird’s performance chart lists an adjustable wetted diameter up to 2 feet. Actual coverage depends on pressure and adjustment.
Why Buy from Big Frog Supply?
Choose UXB360SPYK when a small umbrella pattern suits the plant better than separate streams. Its spike and included barb coupler support a 1/4-inch tubing layout, while the 35 GPH maximum and 2-foot maximum wetted diameter at 30 psi help check water demand and planting-space fit before ordering.
Merchant SKU: UXB360SPYK; manufacturer model: UXB-360-SPYK.
Pattern: full-circle, 360° umbrella bubbler.
Connection: 1/4-inch tubing barb on spike assembly; includes a barb × barb coupler.
Operating pressure: 15–30 psi.
At 30 psi: adjustable flow up to 35 gallons per hour (GPH). Maximum flow changes with inlet pressure.
At 30 psi: manufacturer chart lists an adjustable wetted diameter up to 2 feet. This is coverage diameter, not radius.
Flow and coverage are adjusted by turning the outer cap.
