    Spec Sheet

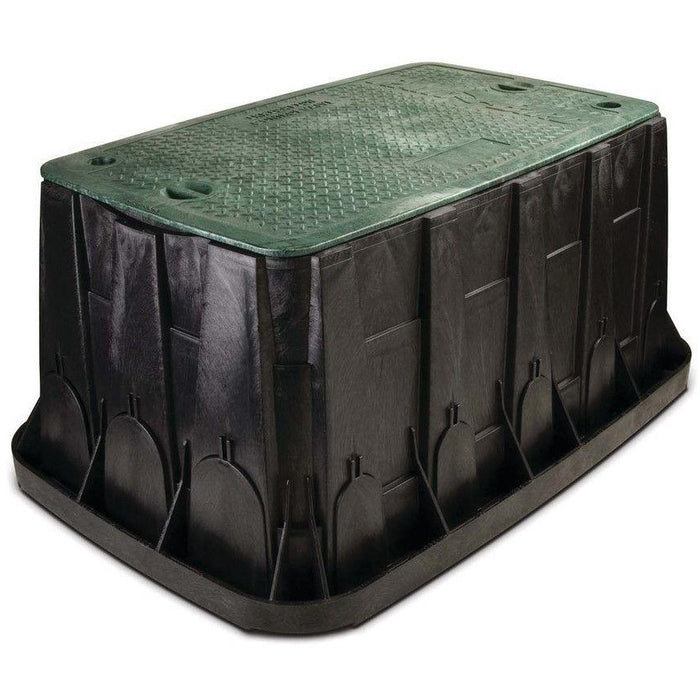

    When it comes to irrigation system installation and design, valve boxes play an important role, yet often aren't given much thought. A well-designed valve box can make installations faster and easier while reducing the need for future maintenance.


    • Body is made from 100 percent recycled materials, making them earth-friendly and LEED compliant.
    • Lids also have beveled edges that minimize the potential for damage from lawn equipment while allowing for easier hand and shovel access.
    • Pipe-hole knockouts designed to fit with most pipe configurations are built into the sides of the valve box for easy pipe placement with little need for time-consuming, tedious cutting.
    • Knockouts can be slid back into place to keep backfill dirt from entering the valve box.
    • For larger and deeper applications, valve box extension models and bottom - to- bottom stacking and interlocking capabilities to provide installation flexibility.


    • Top Opening: 29.4" x 16.4" (74.7 cm x 41.7 cm)
    • Maximum Top: 34.4" x 21.1" (87.4 cm x 53.5 cm)
    • Bottom Opening: 35.1" x 21.9" (89.1 cm x 55.4 cm)
    • Maximum Bottom: 40.4" x 27.1" (102.5 cm x 68.9 cm)


    Eighteen knock-outs accommodate up to a 3.5" (8.9 cm) diameter pipe. Includes two stainless steel bolts and clips to securely fasten the lid to the body.

      T: 29.4" L x 16.4" W x 18.0" H
      B: 35.1" L x 21.9" W
      (T: 74.7 cm x 41.7 cm x 45.7 cm)
      (B: 89.1 cm x 55.4 cm)
