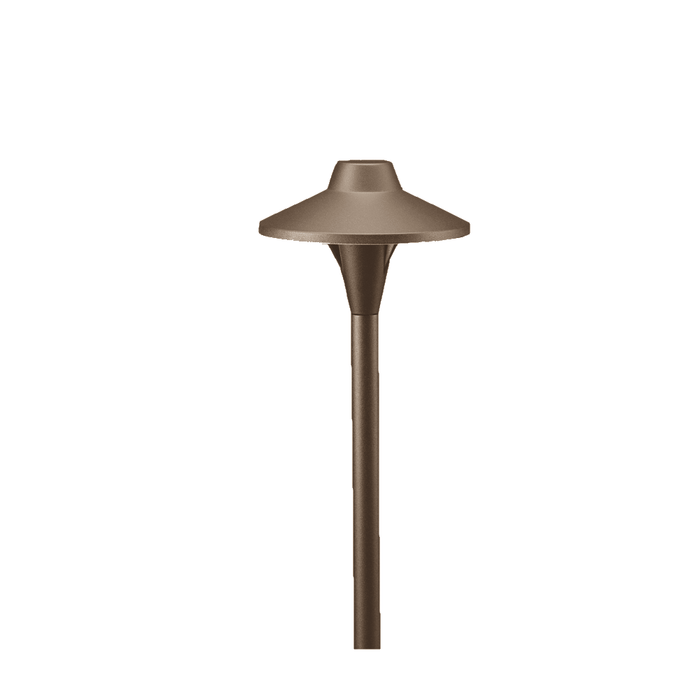

Vista Outdoor Lighting - PR-6507-Z-2.5-W-T3 - 6507 2.5 Watt Architectural Bronze Path Light with Ground Spike

SKU PR-6507-Z-2.5-W-T3
Sold out
Original price $ 131.20 - Original price $ 131.20
Original price
$ 131.20
$ 131.20 - $ 131.20
Current price $ 131.20

Spec Sheet   Install Manual

This low voltage LED path light fixture is constructed from heavy-gauge, copper-free, die-cast aluminum for lasting strength and durability under all weather conditions.

A high impact polycarbonate lens is textured for even light distribution and perfectly sealed for maximum protection in all damp and wet locations. The stem is a ½” schedule-40 aluminum pipe with a ½” NPT.

Available in a high-strength, polyester powder coat Architectural Bronze finish. The 6507 is shipped with a 2.5 Watt T3 LED lamp. ABS ground stake mounting hardware is included.

FIXTURE FEATURES:

  • HOUSING: Die-cast, copper-free aluminum
  • STEM: ½” schedule-40 aluminum pipe with ½” NPT.
  • FINISH: Polyester powder-coat finish available in Architectural Bronze.
  • LENS: Clear, high-impact, polycarbonate lens.
  • LAMP TYPE: Vista T3 LED lamp only, 2.5 watt.
  • ELECTRICAL: Input voltage range 9–15V AC, regulated to achieve uniform illumination throughout the cable run of fixtures. Integral surge & reverse polarity protection.
  • MOUNTING: Bottom of stem threaded with ½” NPT. Fixture may be mounted into threaded hubs in junction boxes, ground stakes, or floor-mounting canopies.
  • FASTENERS: All fasteners are stainless steel.
  • WIRING: Prewired with a three-foot pigtail of 18-2 direct-burial cable and underground connectors for a secure connection to supply cable.

Specifications:

  • Lamp Type: LED
  • LED Wattage: 2.5W
  • Material: Aluminum

Dimensions:

  • Overall Height:  15.75"
  • Hat Height:  2"






Over the years, a select few products have risen above the rest with their unparalleled performance. We're thrilled to share these gems with you. Whenever you spot the "From the Frog" badge, rest assured it's more than just a mark of quality—it's a symbol of our dedication and careful consideration in choosing the best for you.

HOUSING: Die-cast, copper-free aluminum
STEM: ½” schedule-40 aluminum pipe with ½” NPT.
FINISH: Polyester powder-coat finish available in Architectural Bronze.
LENS: Clear, high-impact, polycarbonate lens.
LAMP TYPE: Vista T3 LED lamp only, 2.5 watt.
ELECTRICAL: Input voltage range 9–15V AC, regulated to achieve uniform illumination throughout the cable run of fixtures. Integral surge & reverse polarity protection.
MOUNTING: Bottom of stem threaded with ½” NPT. Fixture may be mounted into threaded hubs in junction boxes, ground stakes, or floor-mounting canopies.
FASTENERS: All fasteners are stainless steel.
WIRING: Prewired with a three-foot pigtail of 18-2 direct-burial cable and underground connectors for a secure connection to supply cable.

Overall Height: 15.75"
Hat Height: 2"
