Product Overview
The Vu-Flow NT60SC40 is a 40-mesh polyester replacement element for 1-1/2 in. NT and Combo screen filters. Its approximately 381-micron opening provides a defined particle-screening choice when servicing a compatible existing filter.
Match both the screen-filter element design and the filter size before ordering. A screen with the same mesh rating can still have the wrong shape or fit. This is a reusable replacement element, so the existing housing and serviceable seals remain part of the installation.
Key Features
- 40-mesh polyester media
- Sized for 1-1/2 in. NT and Combo screen filters
- Washable, reusable screen design
Common Uses
- Replacing a worn or damaged compatible filter element
- Restoring the selected mesh rating during filter service
Technical Specifications
- Model: NT60SC40
- Part type: Replacement screen-filter element
- Compatible assemblies: 1-1/2 in. NT and Combo screen filters
- Mesh: 40
- Approximate mesh opening: 381 microns
- Filter media: Polyester
- Service: Water sediment screening
Dimensions
- Element: 8-1/8 in. L × 1-5/8 in. OD
Compatibility & Installation Notes
- Confirm the existing housing accepts the NT60SC40 element; nominal pipe size alone does not establish fit.
- Isolate and depressurize before removing the cover. Clean the housing and inspect seals before reassembly.
- Replacement element only; housing and purge valve are not included.

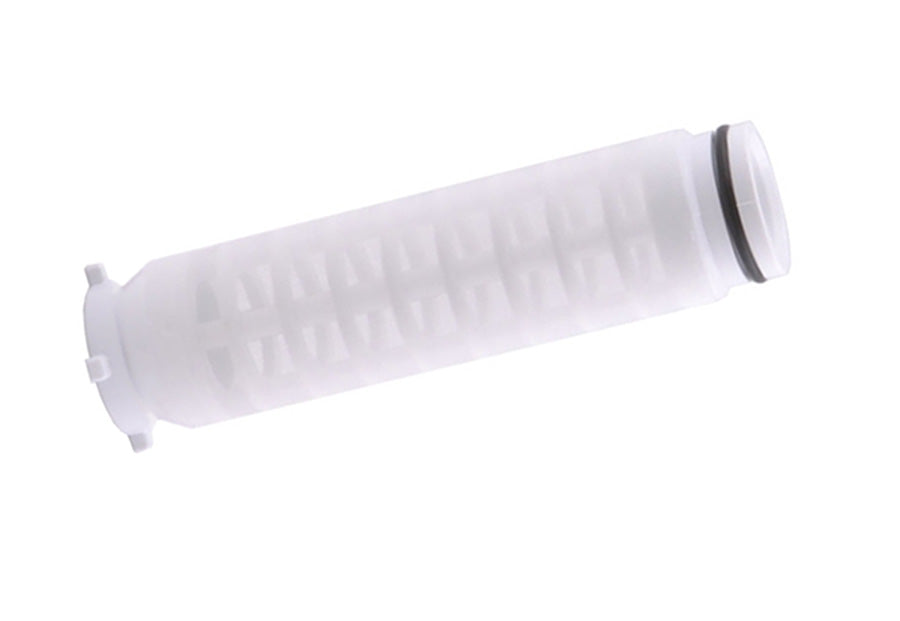

- Manufacturer image is representative of this screen family; mesh appearance and element size vary by model.
Frequently Asked Questions
What filters does this element fit?
American Granby identifies NT60SC40 for 1-1/2 in. NT and Combo screen filters. Match the exact element family as well as the nominal filter size.
What does the mesh rating mean?
The 40-mesh screen has an approximate 381-micron opening. Choose a mesh suited to your sediment and downstream equipment.
Is this a complete filter?
No. This listing is for the replacement screen element; the housing and purge valve are not included.
Can the element be cleaned?
Yes. The reusable element can be cleaned during service. Isolate and depressurize the system before opening the cover.
Why Buy from Big Frog Supply
The NT60SC40 pairs 40-mesh polyester media with the screen-filter design for 1-1/2 in. NT and Combo screen filters. That combination helps you order by particle opening and assembly fit together, avoiding a same-mesh element intended for a different filter style.
