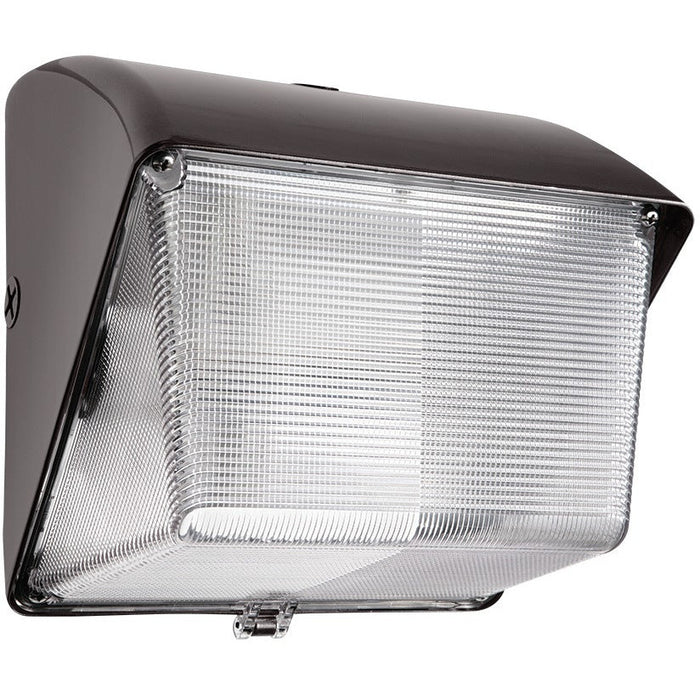

Compact Wallpack. UV stabilized, vandal resistant prismatic polycarbonate refractor. Lamp supplied.

Color: Bronze

Weight: 5.7 lbs

Lamp Info

• Type: 42W Triple
• Watts: 42W
• Hours: 12,000
• Lamp Lumens: 3,200
• Efficacy: 70 LPW

Ballast Info

• Type: Elec HPF QT
• 120V: 0.38A
• 208V: 0.3A
• 240V: 0.2A
• 277V: 0.17A
• Input Watts: 46W
• Efficiency: 91%

Technical Specifications

Listings

• UL Listing: Suitable for wet locations. HID fixtures can be wired with 90°C supply wiring if supply wires are routed 3" away from the ballast.

Construction

• Housing: Die cast aluminum, 1/2" NPS tapped top, both sides and back for conduit or photocontrol. Hinged refractor. Continuous one piece silicone rubber gasket.
• Reflector: Semi-Specular anodized aluminum, removable for installation. Symmetrical light pattern maximizes distance between fixtures.
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Conduit Openings: Top, side and back.
• Template: Drilling template for easy wall box mounting.
• Ballast Minimum Starting Temperature: 0°F.

Other

• Patents: Pat. D440,683.
