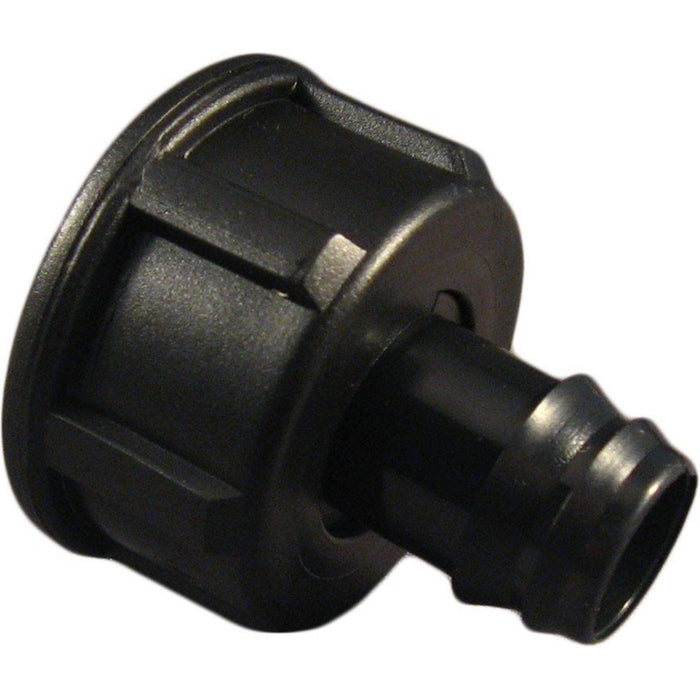

Rain Bird XFDFA075 17mm x 3/4-Inch FPT Adapter
Brand: Rain Bird | SKU: XFDFA075
Product Overview
Make a straight transition between 17mm XF dripline and a compatible 3/4-inch male pipe-thread fitting with Rain Bird XFDFA075. One end inserts into the dripline and the other provides a female threaded connection. Select this adapter when the supply or accessory has male threads and an inline layout suits the installation.
Key Features
- Straight barb-to-female-thread configuration.
- 17mm insert barb for compatible XF dripline.
- 3/4-inch female pipe-thread connection.
Common Uses
- Joining a 17mm XF dripline run to a compatible male-threaded supply fitting.
- Making a straight threaded transition without the branch of a tee or turn of an elbow.
Technical Specifications
- Model: XFDFA075 / XFD-FA-075; factory part: X36277.
- Configuration: straight barb female adapter.
- Tubing connection: 17mm insert barb for XF dripline.
- Threaded connection: nominal 3/4-inch female pipe thread (FPT).
- XF insert-fitting operating pressure: up to 50 psi without a clamp, per the XF design guide.
- Fitting only; dripline and mating threaded fitting are separate.
Compatibility & Installation Notes
Match 17mm XF dripline and a 3/4-inch male pipe-thread fitting. A female-threaded accessory requires a different transition.
Cut the tubing cleanly and fully seat it on the insert barb. Rain Bird cautions against heating polyethylene tubing before insertion because the connection can be damaged.
Keep the complete zone within its component pressure ratings and follow the dripline requirements for filtration and regulation. This fitting does not provide either function. Flush the line during assembly and inspect the completed connection for leaks.
Frequently Asked Questions
Is XFDFA075 male or female threaded?
It has a 3/4-inch female pipe-thread connection, with a 17mm insert barb at the opposite end.
Is this the elbow or tee adapter?
No. XFDFA075 is the straight barb female adapter. Select the appropriate elbow or tee model if the layout requires a turn or branch.
Can it be selected by tubing outside diameter alone?
No. Match compatible 17mm XF dripline and its insert-fitting requirements as well as the 3/4-inch threaded connection.
