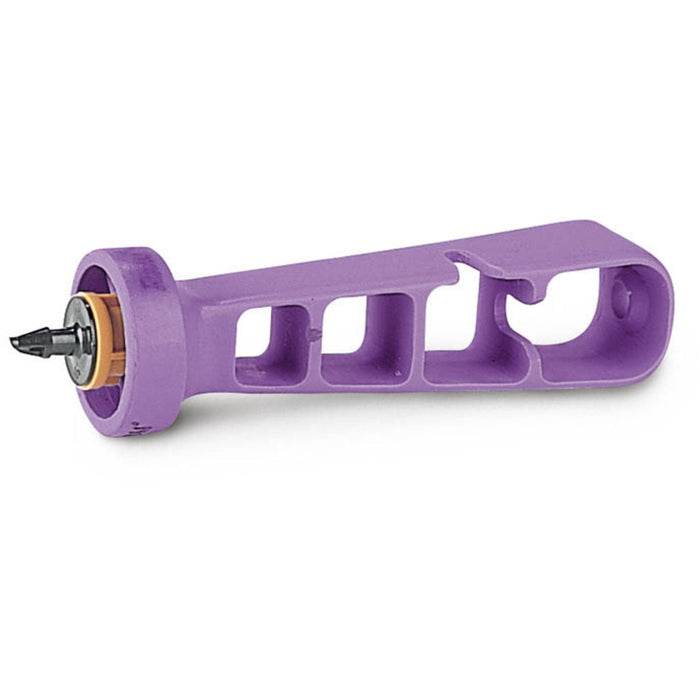

Rain Bird - XMTOOL Emitter Installation Tool
Provides fast, easy, one-step installation of Xeri-Bug™ emitters, PC Modules and 1/4" barbed insert fittings directly into 1/2" or 3/4" drip tubing such as Xeri-Tube™ (XT-700).
Steps in using the Emitter ToolStep 1

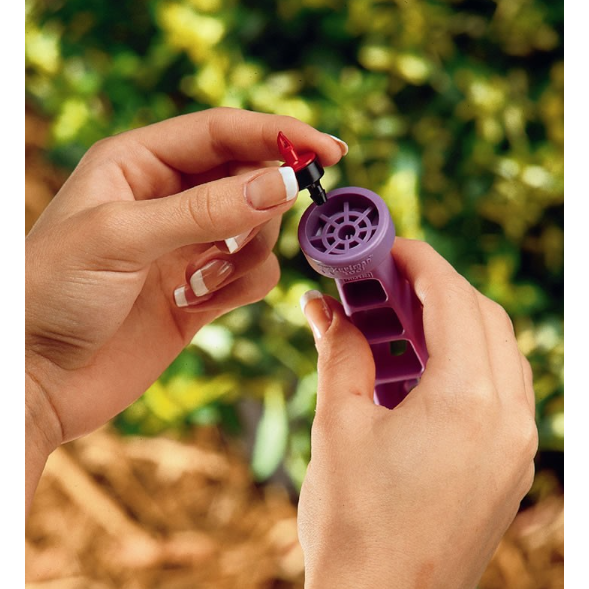

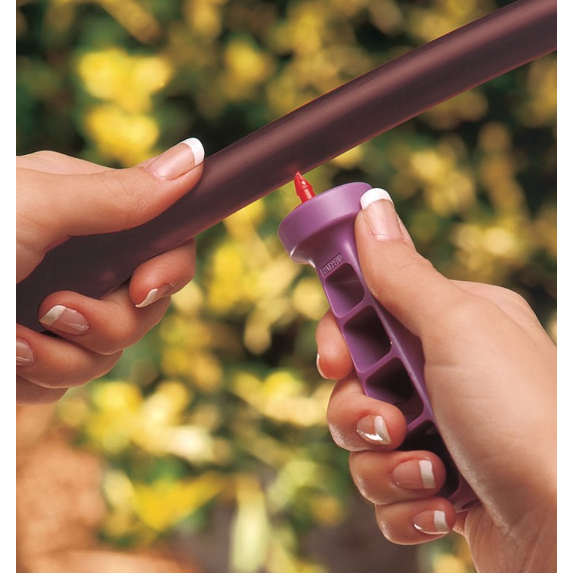

Place the Spot Watering Emitter on end of tool. Press barbed point into side wall of 1/2" Tubing.
Note: The Emitter Tool also works with 1/4" Barbed Couplings and with 1/4" Barbed Tees.Step 2
Pull tool away, leaving the Spot Watering Emitter embedded in tubing.Step 3
Push 1/4" tubing onto the Spot Watering Emitter.Step 4
To remove Spot Watering Emitters, use side of tool.Step 5
1/4" Tubing Plugs can be used to seal holes in 1/2" tubing. Use bottom of Emitter Tool to insert these plugs.
