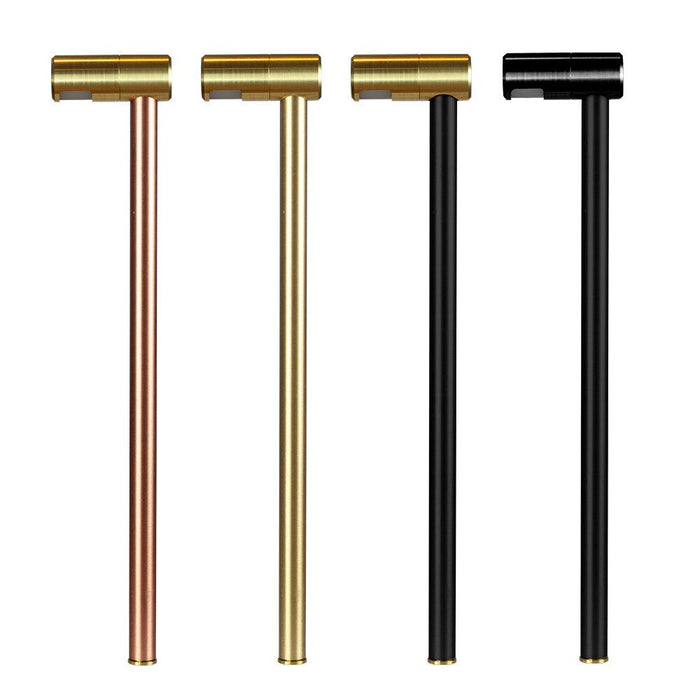

Brilliance LED - Redwood Path Light

Spec Sheet

The Redwood Path Light comes complete with a frosted glass window that can rotate 360° and locks in with a set screw.

Features:

• Use: Path, area, and garden accent lighting
• Finish: Brass, Copper, or Brass w/ Black Cerakote®
• Includes:
• LightingShrink Professional Crimp
• Heat Shrink Cable Connector
• No Lamp Options Available

Specifications:

• Wattage: 2
• Lumens: 120
• Beam Spread: 180 Degree
• Kelvin Temperature: 2700K
• Operating Range: 8-18V AC/DC
• Replaces: 25W Halogen
• CRI: 85
• IP: 60
• Chipset: Samsung
• Lamp Life (hours): 35,000
• Warranty (years): 5

SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

1. Connect the power cable from the fixture body to the landscape cable.

2. Lay the power cable into the slotted relief on the stake.

3. Press the fixture and stake into the ground.

4. Use a level to ensure the top of the stake is level with the ground.

HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

1. Unscrew the fixture body from the stake.

2. Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.

3. Use a level to ensure the top of the stake is level with the ground.

4. Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.

5. Connect the power cable from the fixture body to the landscape cable.

INSTALLING THE LAMP

1. Loosen the set screw for the lens cover.

2. Remove the brass lens cover.

3. Install the G4 Wafer into the socket.

4. Place the lens cover back on the fixture body.

5. When using a Micro G4 or Beacon G4, you can adjust the window to direct light where you want it

Wattage: 2
Lumens: 120
Beam Spread: 180 Degree
Kelvin Temperature: 2700
Operating Range: 8-18V AC/DC
Replaces: 25W Halogen
CRI: 85
IP: 60
Chipset: Samsung
Lamp Life (hours): 35,000
Warranty (years): 5
