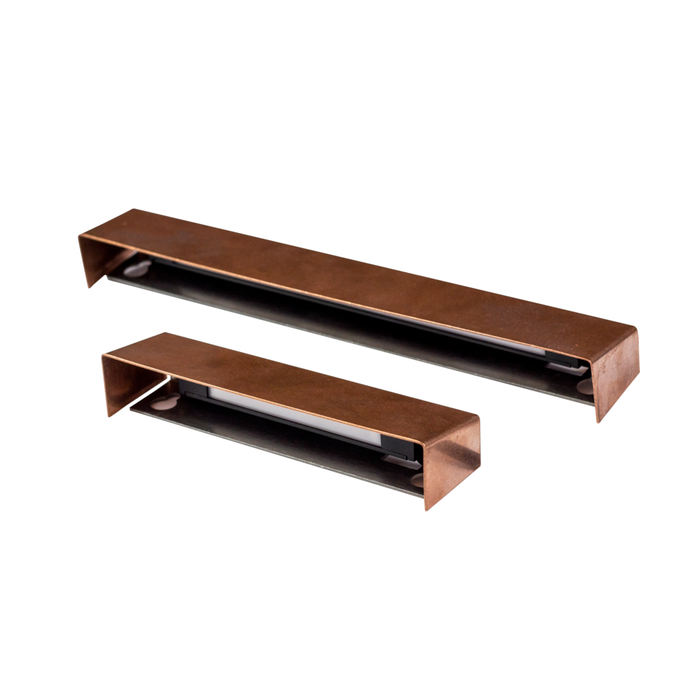

Brilliance LED - Surface Mount Wall Washer

Spec Sheet

The Surface Mount Wall Wash gently spreads light through its integrated LED light bar. It comes in 2 sizes (Small and Medium) to meet any wall or hardscape lighting requirement. Dimmable with Brilliance Dimmer and most magnetic transformers. Light source UL Certified E511083.

Features:

• Areas with Elevation Changes or Dark Sky Requirements
  Deck, Step, & Hardscape Applications
• Brass, Copper, or Brass w/ Black Cerakote®
• Includes:
• Integrated Light Bar
• LightingShrink Professional Crimp
• Heat Shrink Cable Connector

Integrated Lamp Specifications 2700K (small fixture):

• Wattage:  1.5W
• Kelvin Temperature:  2700K
• Lumens:  110
• CRI:  85
• IP: 65
• Operating Range:  8-15VAC
• Warranty (years): 5

Integrated Lamp Specifications 3000K (small fixture):

• Wattage:  1.5W
• Kelvin Temperature:  3000K
• Lumens:  110
• CRI:  85
• IP: 65
• Operating Range:  8-15VAC
• Warranty (years): 5

Integrated Lamp Specifications 2700K (medium fixture):

• Wattage:  2.5W
• Kelvin Temperature:  2700K
• Lumens:  200
• CRI:  85
• IP: 65
• Operating Range:  8-15VAC
• Warranty (years): 5

Dimensions:

• Small:
• Length: 5.63"
• Height: 1.06"
• Medium:
• Length:  9.5"
• Height:  1.06"

Integrated Lamp Specifications 2700K (small fixture):

Wattage: 1.5W
Kelvin Temperature: 2700K
Lumens: 110
CRI: 85
IP: 65
Operating Range: 8-15VAC
Warranty (years): 5
Integrated Lamp Specifications 3000K (small fixture):

Wattage: 1.5W
Kelvin Temperature: 3000K
Lumens: 110
CRI: 85
IP: 65
Operating Range: 8-15VAC
Warranty (years): 5
Integrated Lamp Specifications 2700K (medium fixture):

Wattage: 2.5W
Kelvin Temperature: 2700K
Lumens: 200
CRI: 85
IP: 65
Operating Range: 8-15VAC
Warranty (years): 5

Small:
Length: 5.63"
Height: 1.06"
Medium:
Length: 9.5"
Height: 1.06"
