Franklin Electric 20FV1S4-3W230 — 95422045 1 HP 20 GPM Submersible Well Pump (3-Wire

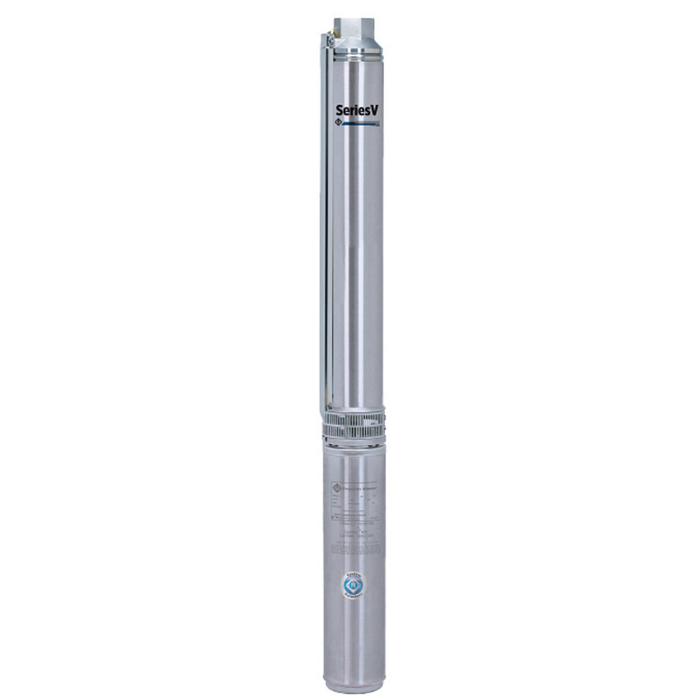

Franklin Electric 20FV1S4-3W230 — 1 HP, 20 GPM V-Series 4″ Submersible Pump (3-Wire)

Reliable 1 HP, 20 GPM stainless V-Series package with a 3-wire motor for installations that prefer external start components and easier field service.

Key Features & Benefits

• Stainless pump end for corrosion resistance
• 3-wire motor — use with the correct Franklin control box
• NEMA 4″ mount, residential well compatible

Specifications

HP 1 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Service Factor 10.4 A
Volts 230 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 3-Wire
Motor Encapsulated
Continuous Duty Yes
Efficiency Service Factor Load [%] 64.00 %
Lead Retainer Method Lead Jam Nut
Flow 20 gpm
Shut Off 251 ft
Stages 7
Motor Ambient Temperature Rating Nominal 86 °F

Discharge Thread NPT
Discharge Diameter 1.25 "
Product Length 27.28 "
Diameter With Cable Guard 3.9 "
Motor Length 11.73 "
Pump Length 15.55 "
Product Weight 33 lb
