Franklin Electric 2445059004GS — 1/2 HP 4" Submersible Well Motor (230V, 2-Wire)

Franklin Electric 2445059004GS — 1/2 HP, 230V, 2-Wire 4" Submersible Motor

Genuine Franklin Electric 4″ submersible motor for residential and light commercial well systems. Corrosion-resistant, water-lubricated design with dependable starting torque and long service life.

Key Features & Benefits

• Stainless-steel construction for corrosion resistance
• Water-lubricated thrust bearing for quiet, long life
• NEMA 4″ motor mounting for broad pump compatibility
• 2-wire design — no external control box required

Applications

• Residential water wells
• Booster and irrigation sets
• Replacement motor for 4″ submersible pumps

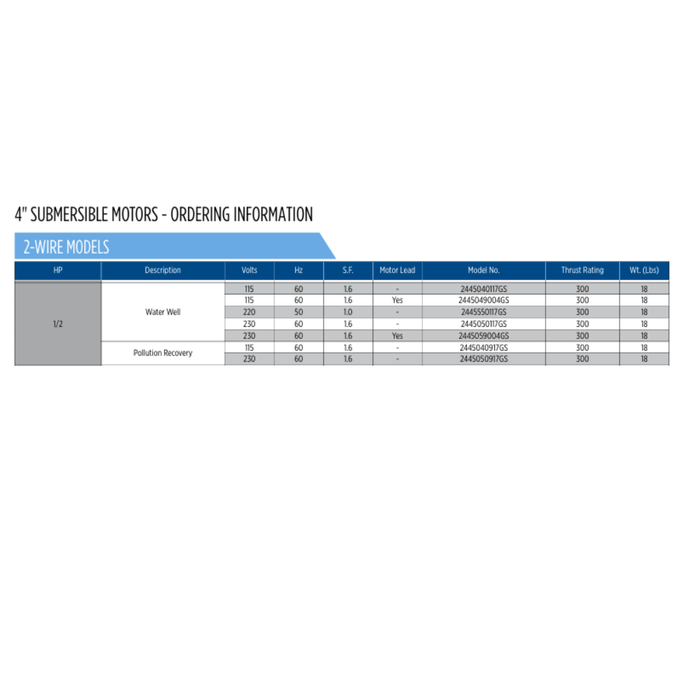

Specifications

HP 1/2 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Full Load 5 A
Amps - Service Factor 6 A
Volts 230 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 2-Wire
Lead Length 4 ft
Motor Submersible
Continuous Duty Yes
Efficiency [η] - Full Load (%) 56.00
Efficiency Service Factor Load [%] 60.00 %
Protection [IP] IP68
Lead Wire Size AWG #14
Lead Retainer Method Lead Jam Nut
Motor Efficiency 56.0
Motor Insulation Classification B
Poles 2
S.F. 1.6
Lead Yes
Motor Cooling Water
Minimum Cooling Flow >0.00 ft/sec
Motor Ambient Temperature Rating Nominal 86 °F
Thrust Bearing Rating @ 89 F, 30 C 300 lb
Rotation Counter clockwise facing the shaft

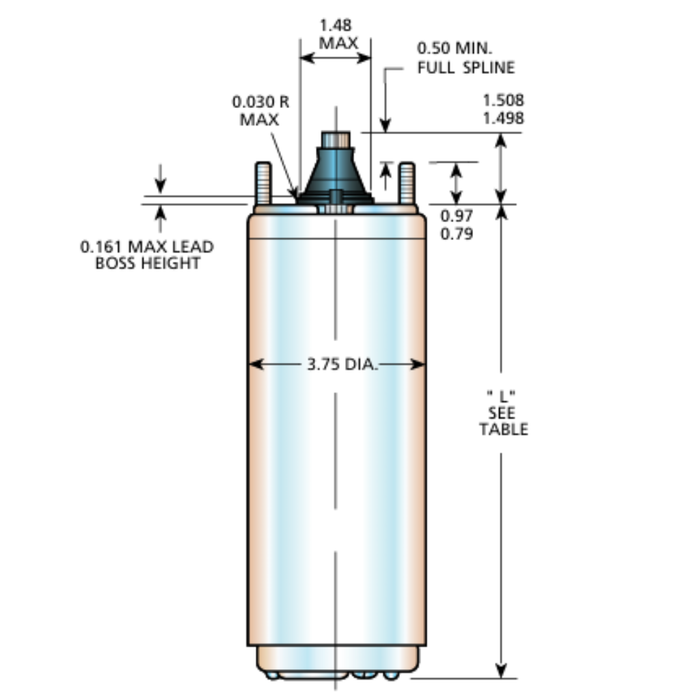

Motor Diameter - Physical Diameter 95.25 mm
Motor Length 9.51 "
Product Weight 19 lb
Product Weight with Pack 18 lb
Carton Length 14.5 "
Shaft Diameter 0.61 "
Shaft End Spline
