Franklin Electric 2445089003GS — 1 HP, 230V, 2-Wire 4" Submersible Motor

High-reliability 1 HP Franklin Electric submersible motor with stainless components and water-lubricated bearings for dependable deep-well performance.

Key Features & Benefits

• Stainless exterior with corrosion resistance
• Water-lubricated thrust system
• NEMA 4″ mount for broad compatibility
• 2-wire — no external control box needed

Applications

• Residential wells and light irrigation
• Replacement motor for 4″ pump ends

Specifications

HP 1 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Full Load 8.2 A
Amps - Service Factor 10.4 A
Volts 230 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 2-Wire
Lead Length 4 ft
Motor Submersible
Continuous Duty Yes
Efficiency [η] - Full Load (%) 62.00
Efficiency Service Factor Load [%] 64.00 %
Lead Wire Size AWG #14
Lead Retainer Method Lead Jam Nut
Motor Efficiency 62.0
Motor Insulation Classification B
Poles 2
S.F. 1.4
Lead Yes
Motor Cooling Water
Minimum Cooling Flow >0.00 ft/sec
Motor Ambient Temperature Rating Nominal 86 °F
Thrust Bearing Rating @ 89 F, 30 C 650 lb
Rotation Counter clockwise facing the shaft

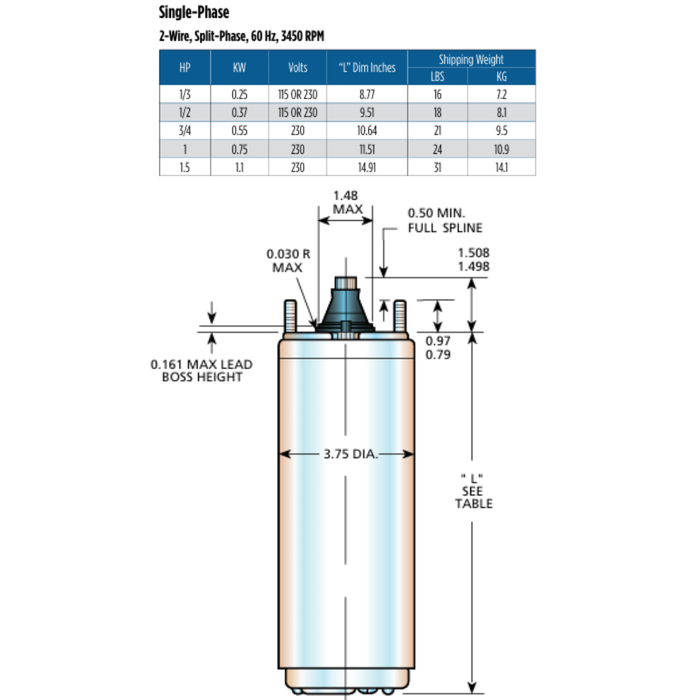

Motor Diameter - Physical Diameter 95.25 mm
Motor Length 11.73 "
Product Weight 24 lb
Product Weight with Pack 24 lb
Shaft End Spline
