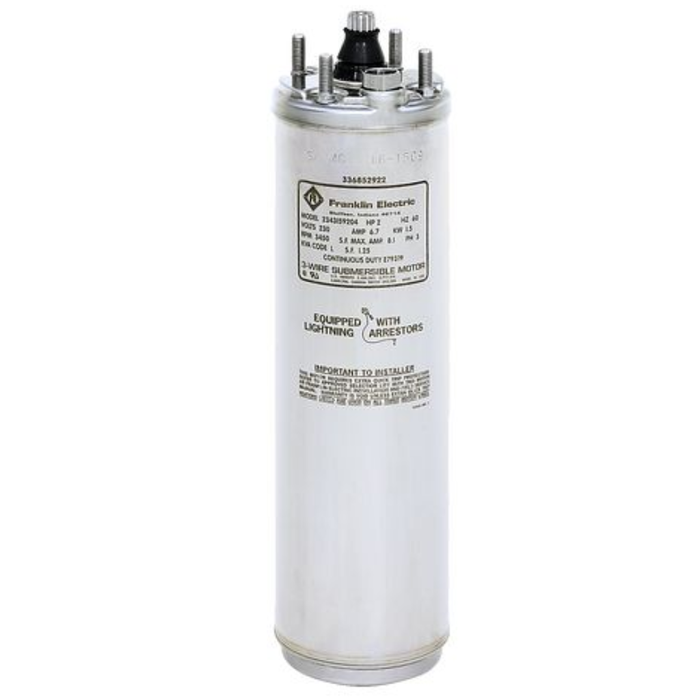

Franklin Electric 2243009203GS — 1.5 HP, 230V, 3-Wire 4" Submersible Motor

Heavy-duty 1.5 HP 3-wire motor engineered for reliable deep-well performance with external control box operation.

Key Features

• Stainless-steel construction; corrosion resistant
• Water-lubricated thrust bearing
• NEMA 4″ standardized mount
• 3-wire start/run with external control box

Specifications

HP 1.5 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Full Load 10 A
Amps - Service Factor 11.5 A
Volts 230 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 3-Wire
Lead Length 4 ft
Motor Submersible
Continuous Duty Yes
Efficiency [η] - Full Load (%) 69.00
Efficiency Service Factor Load [%] 73.00 %
Lead Wire Size AWG #14
Lead Retainer Method Lead Jam Nut
Motor Efficiency 73.0
Motor Insulation Classification B
Poles 2
S.F. 1.3
Lead Yes
Motor Cooling Water
Minimum Cooling Flow >0.00 ft/sec
Motor Ambient Temperature Rating Nominal 86 °F
Thrust Bearing Rating @ 89 F, 30 C 650 lb
Rotation Counter clockwise facing the shaft

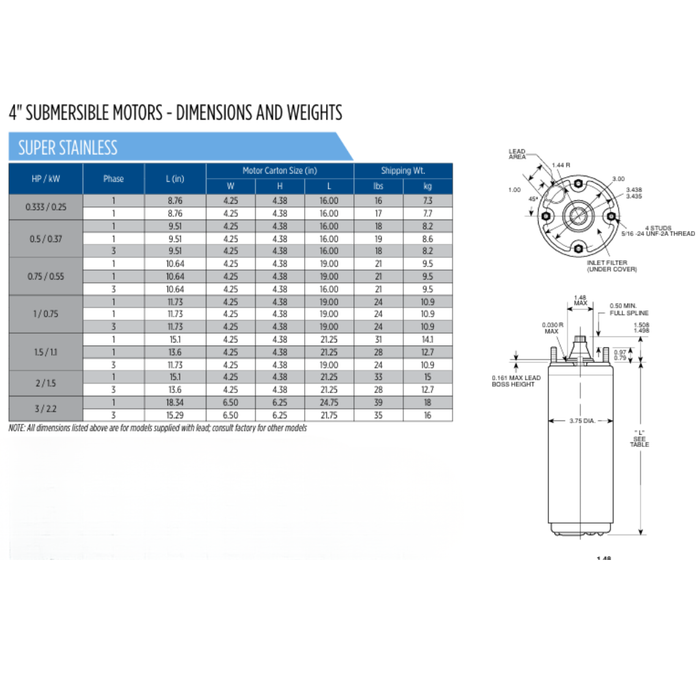

Motor Diameter - Physical Diameter 95.25 mm
Motor Length 13.66 "
Product Weight 28 lb
Product Weight with Pack 28 lb
Shaft End Spline
