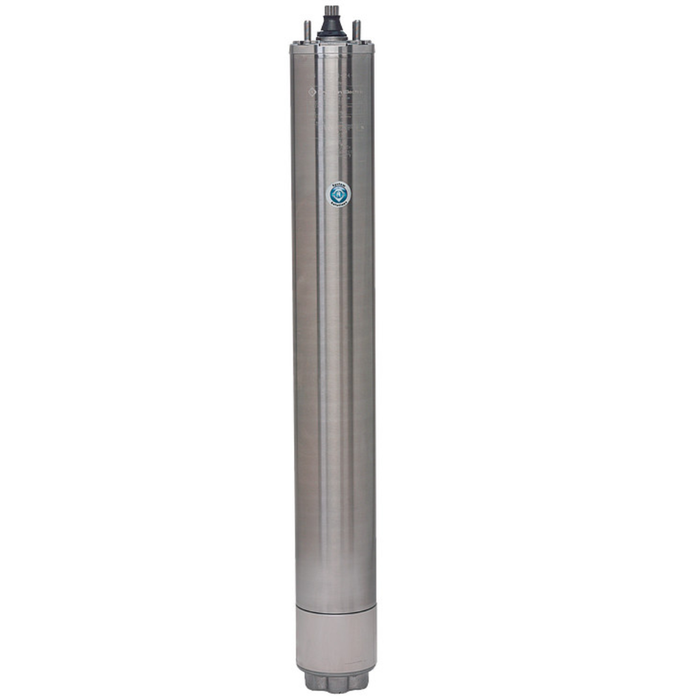

Franklin Electric 2247038602G — 5 HP, 230V 4" Submersible Motor

Top-tier 5 HP 4″ motor for high-demand well systems requiring superior head and flow. Built to Franklin’s industry standard for longevity.

Key Features

• Rugged stainless construction
• Water-lubricated thrust bearing
• NEMA 4″ mount; deep-well capable
• Single Phase

Specifications

HP 5 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Full Load 21.3 A
Amps - Service Factor 21.3 A
Volts 230 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 3-Wire
Lead Length 8 ft
Motor Submersible
Continuous Duty Yes
Efficiency Service Factor Load [%] 78.00 %
Lead Wire Size AWG #14
Lead Retainer Method Compression Plate
Motor Insulation Classification B
Poles 2
S.F. 1.15
Lead Yes
Motor Ambient Temperature Rating Nominal 86 °F
Thrust Bearing Rating @ 89 F, 30 C 1500 lb
Rotation Counter clockwise facing the shaft

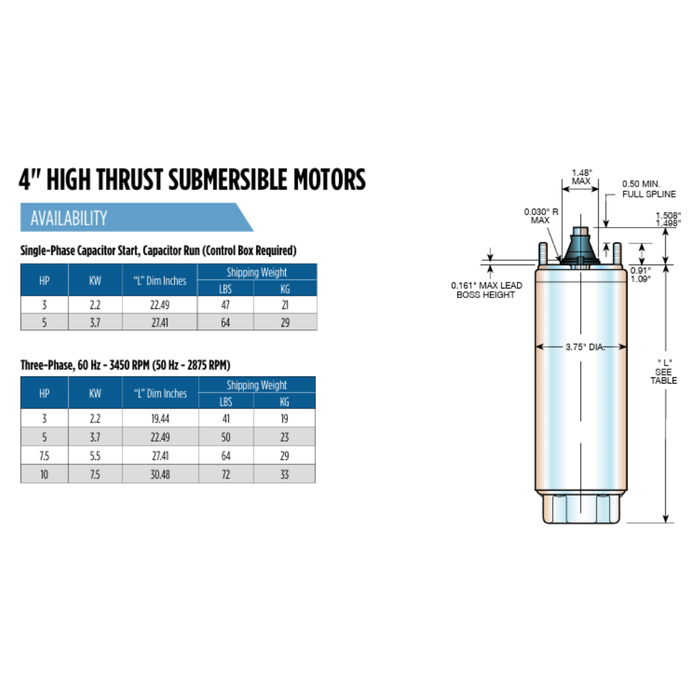

Motor Length 29.2 "
Product Weight 71 lb
Product Weight with Pack 71 lb
Shaft End Spline
